Belt Drive Balancer

Your current location:> >> PRODUCTS >> Universal Balancers >> Belt Drive Balancer

The belt drive balancing machine produced by Shanghai Jianping is used in the unbalance detection of rotating workpieces such as various large and medium-sized motors rotors, impellers, crankshafts, rollers and shafts etc.

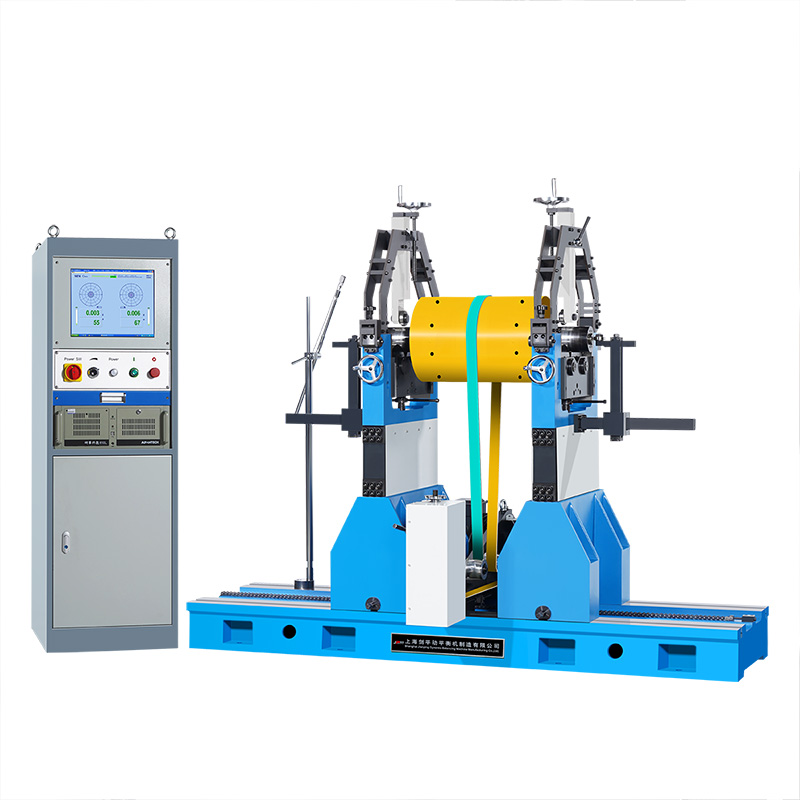

  • Large-sized Belt Drive Balancer Large-sized Belt Drive Balancer

    Used for the unbalance correction of rotating workpieces such as various large and medium-sized motor rotors, impellers, crankshafts, rollers and shafts etc....

    View detailed +

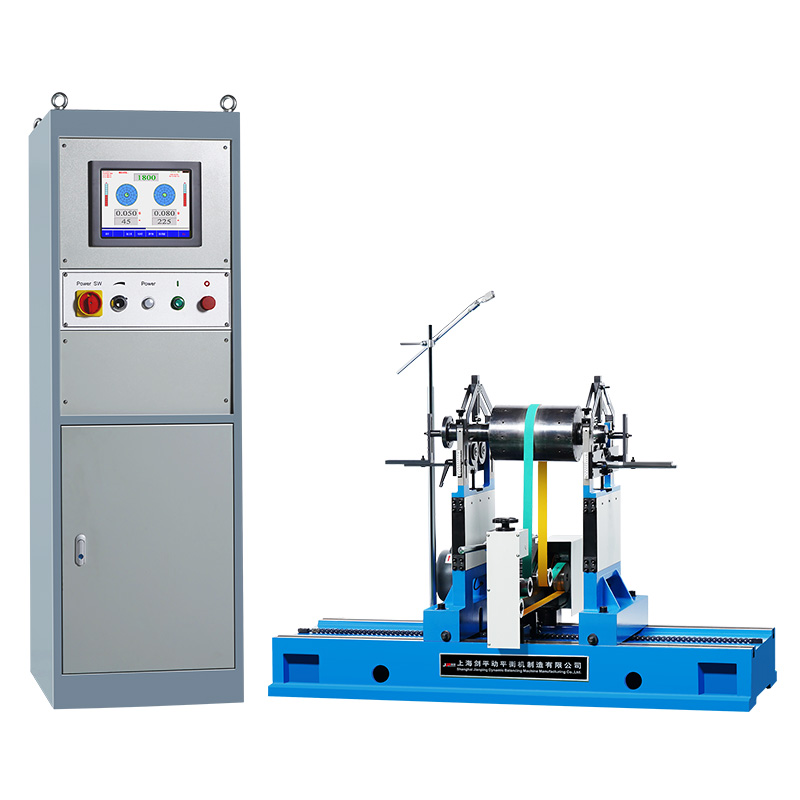

  • Medium-sized Belt Drive Balancer Medium-sized Belt Drive Balancer

    1.Specially designed brackets transmit mechanical force with low vibration damping2.Durable and reliable sensor possesses good linearity3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount4.Belt-driving offers higher precision and easier operation5.Advanced electrical measuring system and friendly man-machine interface6.Modular design offers a wide range of application7.PHQ series are applicable for balancing rotating parts of motor fan impeller pump i...

    View detailed +
  • Small-sized Belt Drive Balancer Small-sized Belt Drive Balancer

    Technical data at a glancePHQ-50PHQ-160HPHQ-160ZPHQ-C160HPHQ-300HPHQ-500HMax Mass of Workpiece(kg)50160160160300500Max Diameter of Workpiece (mm)Φ700Φ1000Φ300400Φ1220Φ1500Distance Between Two Support Bearings (mm)80~700130~1270130~1270130~1270130~1270130~1270Journal Diameter Scope of Workpiece...

    View detailed +
  • Micro-sized Soft-bearing Belt Drive Balancer Micro-sized Soft-bearing Belt Drive Balancer

    PRQ-0.3/0.5/1.1/1.6 Soft Bearing Balancing MachineTechnical data at a glancePRQ-0.5PRQ-1.6PRQ-5PRQ-16Max Mass of Workpiece(kg)0.30.51.11.6Max Diameter of Workpiece (mm)Ø40Ø150Ø80Ø150Distance Between Two Support Bearings (mm)7-7020-32015-11020-320Journal Diameter Scope of Workpiece (m...

    View detailed +
  • Micro-sized Hard-bearing Belt Drive Balancer Micro-sized Hard-bearing Belt Drive Balancer

    Used in the dynamic unbalance detection of various small power tool rotors, permanent magnet motor rotors, spinning cups, couplings, generator rotors, combing rollers, shafts, turbocharger rotors and other rotating workpieces....

    View detailed +
  • Micro-sized Belt Drive Balancer Micro-sized Belt Drive Balancer

    Applicable to small workpiecesTechnical data at a glancePHQ-1.6/5PHQ-1.6A/5APHQ-G5PHQ-16AMax Mass of Workpiece(kg)1.6/51.6/5516Max Diameter of Workpiece (mm)Φ300Φ300Φ300Φ300Distance Between Two Support Bearings (mm)15~50015~50015~50015~500Journal Diameter Scope of Workpiece (mm)Φ 3~40(120°)Φ...

    View detailed +
