Small-sized Belt Drive Balancer

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

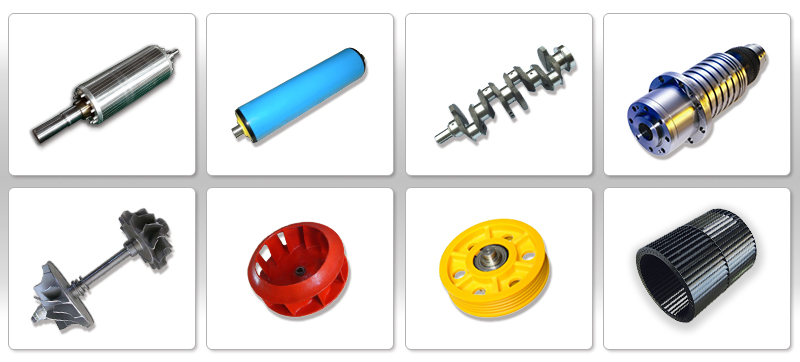

Used for the unbalance correction of rotating workpieces such as various small and medium-sized motor rotors, impellers, crankshafts, rollers and shafts etc.

Feature

This machine adopts Jianping’s electronic measurement system, with various measurement methods, dynamic and static balancing, bearing modes are up to 10 kinds, weight addition& removal, CW and CCW rotation can be flexibly customized. It adopts multiple calibration coefficient combinations, automatically adjusts system sensitivity, and shifts without jumps, software and hardware dual filtering, data compression, the measurement is more stable.

Applicable to medium workpieces

Technical data at a glance	PHQ-50	PHQ-160H	PHQ-160Z	PHQ-C160H	PHQ-300H	PHQ-500H
Max Mass of Workpiece(kg)	50	160	160	160	300	500
Max Diameter of Workpiece (mm)	Φ700	Φ1000	Φ300	400	Φ1220	Φ1500
Distance Between Two Support Bearings (mm)	80~700	130~1270	130~1270	130~1270	130~1270	130~1270
Journal Diameter Scope of Workpiece (mm)	Φ 8~75⁵⁾	Φ 15~75³⁾	Φ200-300	Φ200	Φ 15~75³⁾	Φ 15~75³⁾
Diameter Scope of Driving Belt (mm)	Φ18~200	Φmax400	Φmax300	Φmax400	Φmax500	Φmax600
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)	700,1050¹⁾	~1176	7500¹⁾	756,1176¹⁾	~1176	~1176
Motor Power (kw)	0.75²⁾	1.5²⁾	4²⁾	1.5²⁾	1.5²⁾	2.2²⁾
Length of Bed (mm)		1500			1500	1500
Min Achievable Residual Unbalance Amount (emar)	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg

1) Stepless speed regulation
2) Frequency conversion
3) Can add to 75-180
4) Can add to 120-240
5) Can add to 75-140
