Your current location：> >> PRODUCTS >> Universal Balancers >> Belt Drive Balancer

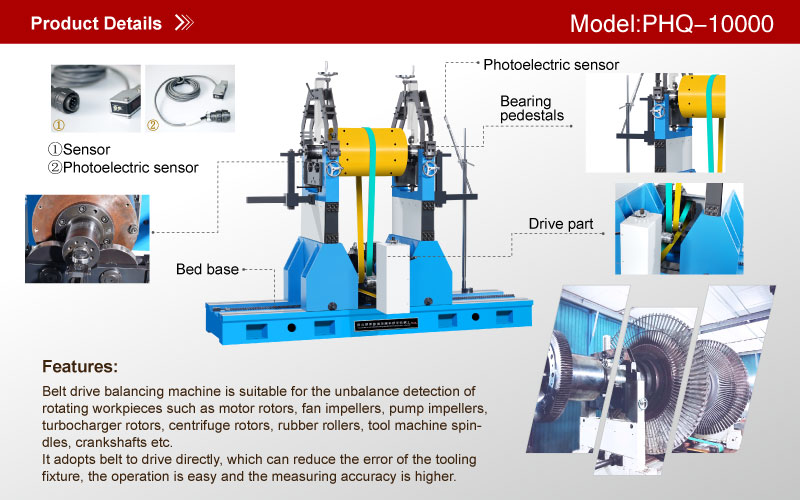

Large-sized Belt Drive Balancer
Describe Parameter Photo Video Download Get a Quote
Application

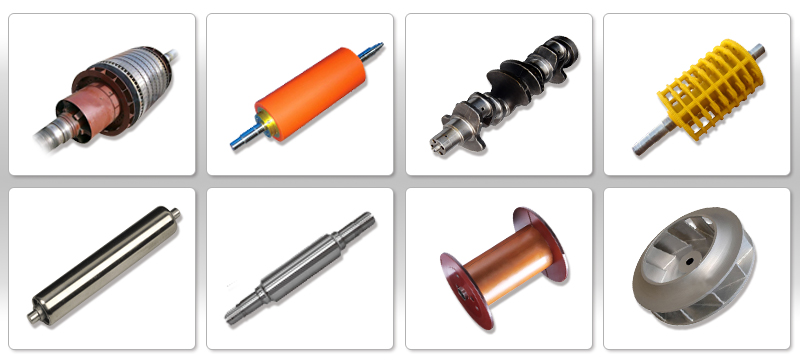

Used for the unbalance correction of rotating workpieces such as various large and medium-sized motor rotors, impellers, crankshafts, rollers and shafts etc.
Features
This machine adopts Jianping electronic measurement system, with various measurement methods, dynamic and static balancing, bearing modes are up to 10 kinds, weight addition& removal, CW and CCW rotation can be flexibly customized. It adopts multiple calibration coefficient combinations, automatically adjusts system sensitivity, and shifts without jumps, software and hardware dual filtering, data compression, the measurement is more stable.
Applicable to huge workpieces
| Technical data at a glance | PHQ-10000H | PHQ-15000H | PHQ-20000H |
| Max Mass of Workpiece(kg) | 10000 | 15000 | 20000 |
| Max Diameter of Workpiece (mm) | Φ2400 | Φ2800 | Φ2800 |
| Distance Between Two Support Bearings (mm) | 750~4600 | 750~5600 | 750~5600 |
| Journal Diameter Scope of Workpiece (mm) | Φ 60~400 | Φ60~400 | Φ60~400 |
| Diameter Scope of Driving Belt (mm) | Φ50~1000 | Φ50~1300 | Φ50~1300 |
| Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | 795,18531) | 795,18531) | 795,18531) |
| Motor Power (kw) | 18.52) | 222) | 302) |
| Length of Bed (mm) | 2500 | 2500 | 2500 |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.5g· mm/kg | ≤0.5g· mm/kg | ≤0.5g· mm/kg |
1) Stepless speed regulation
2) Frequency conversion
3) Can add to 75-180
4) Can add to 120-240
5) Can add to 75-140
