Micro-sized Soft-bearing Belt Drive Balancer
Describe Parameter Photo Video Download Get a Quote
Application

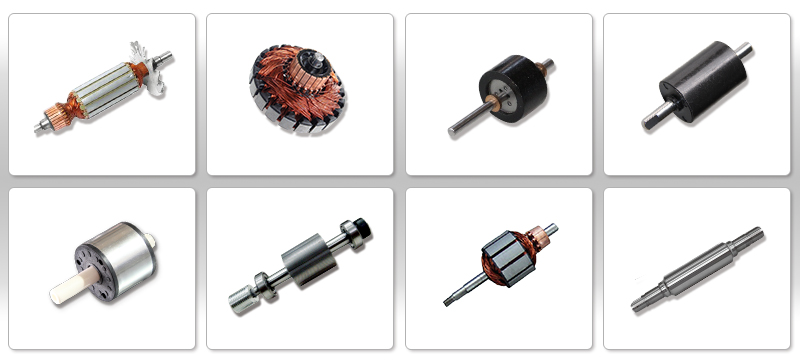

The soft-bearing balancing machine is suitable for the dynamic unbalance test of the micro motor rotors.
Features
1.Developed for the dynamic balancing requirements of micro motor rotors
2.Adopt DC speed regulation drive device to realize stepless speed regulation
3.The bracket system adopts soft-bearing structure
4.High precision sensor achieves the measurement accuracy required by dynamic balancing
5.Jianping's measuring system, friendly HMI, easy to operate
PRQ-0.5/1.6/5/16 Soft Bearing Balancing Machine
| Technical data at a glance | PRQ-0.5 | PRQ-1.6 | PRQ-5 | PRQ-16 |
| Max Mass of Workpiece(kg) | 0.5 | 1.6 | 5 | 16 |
| Max Diameter of Workpiece (mm) | Ø150 | Ø150 | Ø300 | Ø300 |
| Distance Between Two Support Bearings (mm) | 20-320 | 20-320 | 60-300 | 60-300 |
| Journal Diameter Scope of Workpiece (mm) | 2-10 | 2-10 | 5-35 | 5-35 |
| Maximum Diameter of Driving Belt (mm) | Ø10-50 | Ø10-50 | Ø15-200 | Ø15-200 |
| Balancing Speed (r/min) | ~14701) | ~14701) | ~14701) | ~14701) |
| Motor Power (kw) | 0.2DC | 0.2DC | 0.45DC | 0.45DC |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.1g·mm/Kg | ≤0.1g·mm/Kg | ≤0.15g·mm/Kg | ≤0.15g·mm/Kg |
| Power Supply | AC220V,Single-phase,50HZ | AC220V,Single-phase,50HZ | AC220V,Single-phase,50HZ | AC220V,Single-phase,50HZ |
PRS-0.3/1.1 Double Driven Balancing Machine
| Technical data at a glance | PRS-0.3 | PRS-1.1 |
| Max Mass of Workpiece(kg) | 0.3 | 1.1 |
| Max Diameter of Workpiece (mm) | Ø40 | Ø80 |
| Distance Between Two Support Bearings (mm) | 7-44 | 15-110 |
| Journal Diameter Scope of Workpiece (mm) | 1.5-10 | 2-12 |
| Maximum Diameter of Driving Belt (mm) | 40 | Ø70 |
| Motor Power (kw) | 0.1DC | 0.2DC |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.15g·mm/Kg | ≤0.15g·mm/Kg |
| Power Supply | Single-phase 220V 50HZ | Single-phase 220V 50HZ |
1)Stepless speed regulation
