Application

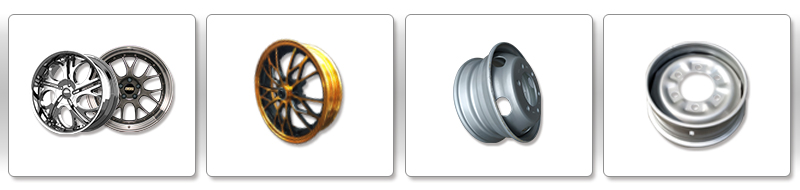

It is applied to the wheel hub unbalance detection of all kinds of commercial vehicles, passenger vehicles.

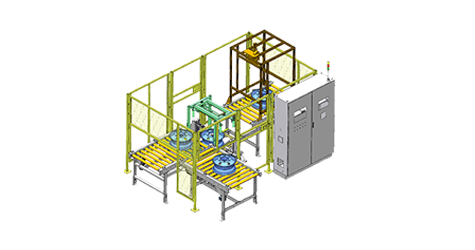

The unbalance detection line independently designed and developed by Shanghai Jianping is applied. The workpiece can realize automatic production from product loading, centering, lifting, automatic unbalance measurement, automatic positioning, end face& radial measurement, once harmonic wave, unbalance marking, automatic unloading. The machine has the characteristics of high precision, fast changeover and high production efficiency, suitable for automatic mass production.

Features

1.Intelligent: can integrate with the production line or single line operation, automatic loading and unloading, automatic centering, automatic measurement, automatic marking;

2.Wide range: suitable for the wheel hub production of various commercial vehicles, passenger vehicles;

3.Comprehensive measurement functions: automatically measure dynamic unbalance, end face & radial runout, once harmonic wave value;

4.Automatic marking, can support one-key changeover;

5.Intelligent material sorting: automatic sorting of OK and NOK products;

6.Convenient operation and compact structure.
