Small-sized Universal Joint Drive&Belt Drive Balancer
Describe Parameter Photo Video Download Get a Quote
Application

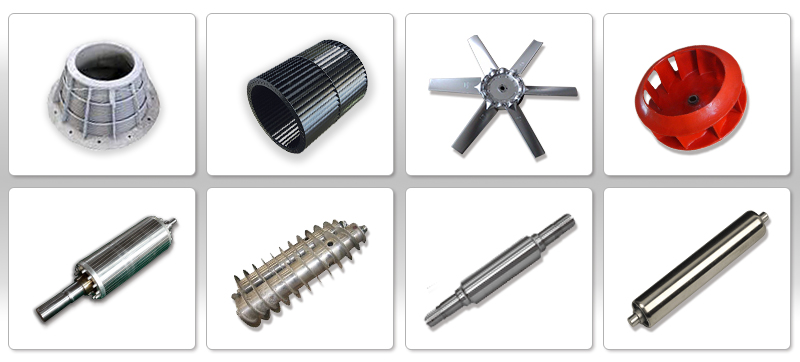

This machine is widely used in the unbalance detection of mechanical rotating parts of small-sized motors, rubber rollers, water pumps, centrifuges, fans, crankshafts etc.
Feature

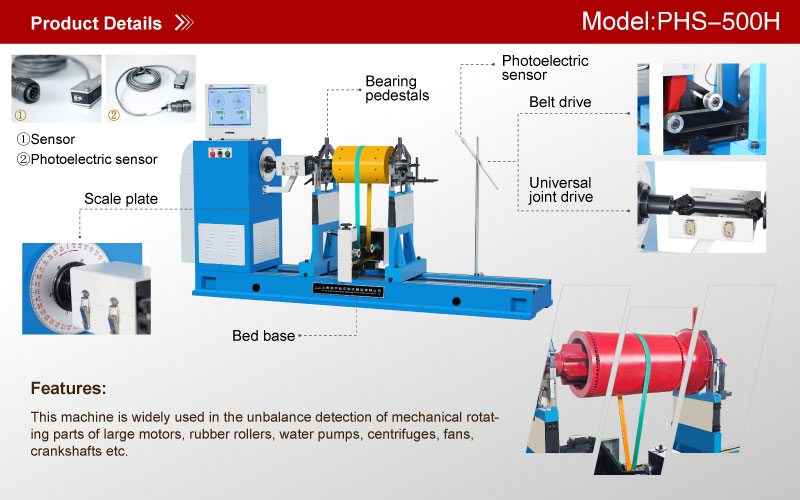

Adopt the universal joint/belt drive dual drive mode, the universal joint drive can transmit more power and run more smoothly. The belt drive ensures the balancing quality and precision of the workpiece, and has the characteristics of convenient loading and unloading, fast start-up and high work efficiency.
Applicable to Small workpieces
| Technical data at a glance | PHS-160H | PHS-300H | PHS-500H |
| Mass Scope of Workpiece(kg) | 160 | 300 | 500 |
| Max Diameter of Workpiece(mm) | Φ1000 | Φ1220 | Φ1500 |
| Distance Between Two Support Bearings(mm) | Min 60 | Min 60 | Min 60 |
| Journal Diameter Scope of Workpiece(mm) | Φ15~752) | Φ15~752) | Φ15~752) |
| Max Distance between Driving Flange and Right Bearing Support (mm) | 1500 | 1500 | 1500 |
| Rotational Speed of the Main Axis(r/min) | 600,10954) | 600,10954) | 600,10954) |
| Motor Power (kw) | 31) | 31) | 41) |
| Torque of Universal Joint Shaft(N·m) | 60 | 60 | 60 |
| Length of Bed (mm) | 2500 | 2500 | 2500 |
| Min Achievable Residual Unbalance Amount(emar) | ≤0.5g· mm/kg | ≤0.5g· mm/kg | ≤0.5g· mm/kg |
1)Frequency conversion
2)Can add to 75-180
3)Can add to 120~240
4)Stepless speed regulation
