Your current location：> >> PRODUCTS >> Automatic Balancers >> Treadmill Motor Automatic Balancer

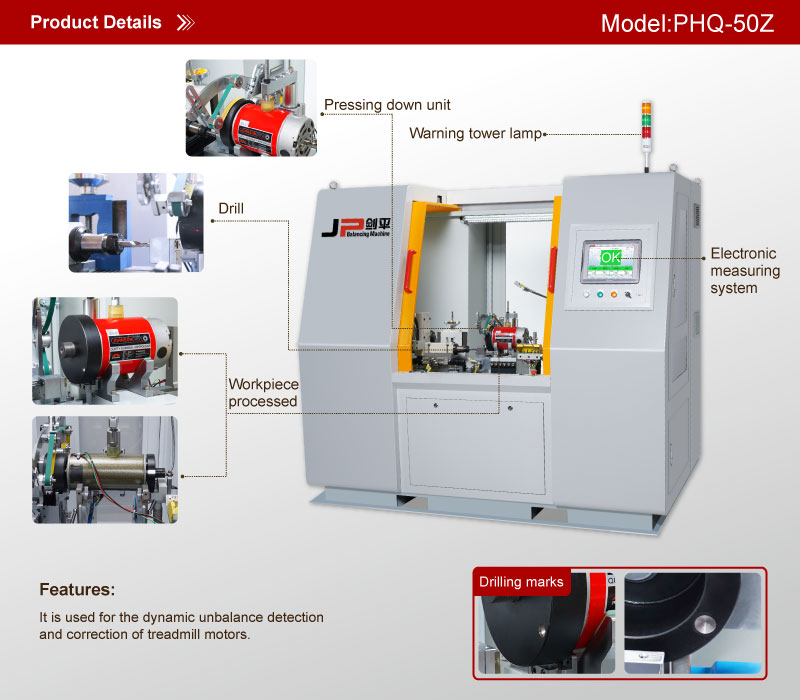

Treadmill Motor Automatic Balancing Machine
Describe Parameter Photo Video Download Get a Quote
Application

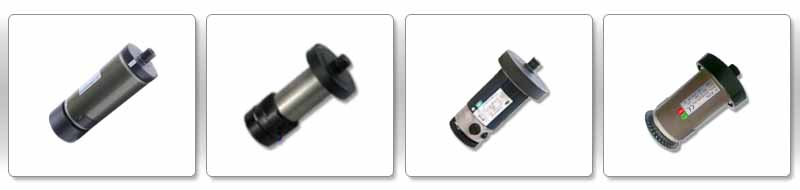

It is used for the dynamic unbalance detection and correction of overall treadmill motors. Suitable for mass production of treadmill motor dynamic balancing.
Features
1.Eliminate vibration caused by components such as bearings and assembly errors.
2.Hard-bearing brackets system expands the measurement range and reduces the failure rate.
3.The fixture can be applied to the overall dynamic balancing due to the use of quick chuck fastening.
4.Fast detection and calculation system, together with the precise automatic weight removal unit, can quickly complete the detection and weight removal of products.
Parameter | |
| Weight of Rotor(kg) | 5-50 |
| Diameter of Support Shaft (mm) | 80-120 |
| Milling Cutter Diameter (mm) | 100-150 |
| Milling Cutter Thickness (mm) | 25-40 |
| Min Achievable Residual Unbalance Amount (emar) | ＜5g· mm/kg |
| Unbalance Reduction Rate by One Time | ＞90% |
Special rotor need to be confirmed with engineer Processing period:35s （it will change accoring to weight.material.dimension） | |
| Configuration | |
| Balancing Machine and Measuring System | Jp Balancer |
| Drilling Engaging Motor | 0.75kw Panasonic Servo Motor |
| Drilling Spindle Motor | 0.75kw |
| Cylinder | SMC |
| Drilling Track | ShangYin |
| Main Driven Motor | Taiwan Hankun |
| Vacuum Cleaner | Suzhou Deico |
