Turbo Molecular Pump Balancing Machines
Describe Parameter Photo Video Download Get a Quote
Application
It is suitable for dynamic balance detection of turbo molecular pumps.
Feature
1.Convenient for loading & unloading
2.Soft-bearing brackets system designed by Jianping

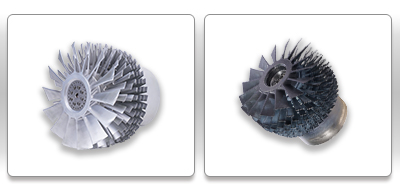

3.Modular design, applied to the balancing of turbo molecular pump impeller
| Technical data at a glance | PRF-16 | PRF-30 | PRF-50 |
| Max Mass of Workpiece(kg) | 16 | 30 | 50 |
| Max Diameter of Workpiece (mm) | Φ300 | Φ350 | Φ550 |
| Distance Between Two Support Bearings (mm) | 350 | 350 | 650 |
| Diameter Scope of Driving Belt (mm) | 100-200 | 100-300 | 100-350 |
| Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | 900 | 800 | 600 |
| Motor Power (kw) | 0.3DC | 0.45DC | 0.75DC |
| Min Achievable Residual Unbalance Amount(emar) | ≤0.15g· mm/kg | ≤0.15g· mm/kg | ≤0.15g· mm/kg |
