Water Tank Fan Balancing Machine
Describe Parameter Photo Video Download Get a Quote
Application

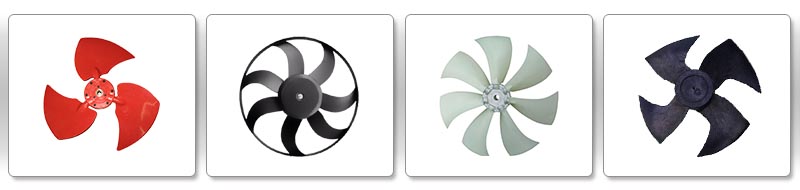

It is suitable for balance detection of disc rotors such as water tank fans.
Features
1.The brackets designed by Jianping can transmit mechanical force, which is firm and reliable, with small vibration damping and good rigidity.
2.High sensitivity sensor, good linearity, durable and reliable.
3.Calibration measurement principle, allowing high initial unbalance.
4.Equipped with a special fixture, more convenient for clamping.
5.Electronic measurement system, friendly HMI, powerful functions.
| Technical data at a glance | PHLD-35Q |
| Max Mass of Workpiece (kg) | 35 |
| Max Diameter of Workpiece (mm) | Φ400 |
| Height of workpiece(mm) | 200 |
| Spindle speed(r/min) | 8004) |
| Motor power(kw) | 1.53) |
| Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg |
1) With hood
2) Without hood
2) Without hood
3) Frequency conversion
4) Stepless speed regulation
5) DC Brushless
6) Servo Motor
4) Stepless speed regulation
5) DC Brushless
6) Servo Motor
