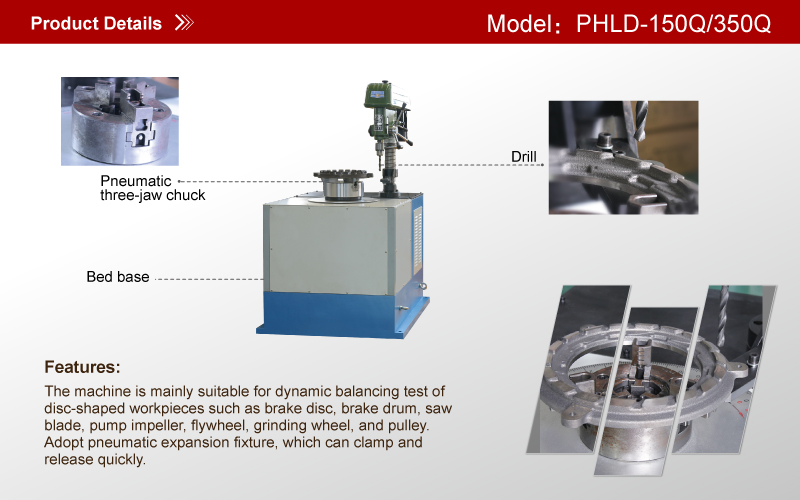

Single-plane Vertical Pneumatic Spindle Balancer
Describe Parameter Photo Video Download Get a Quote
Application

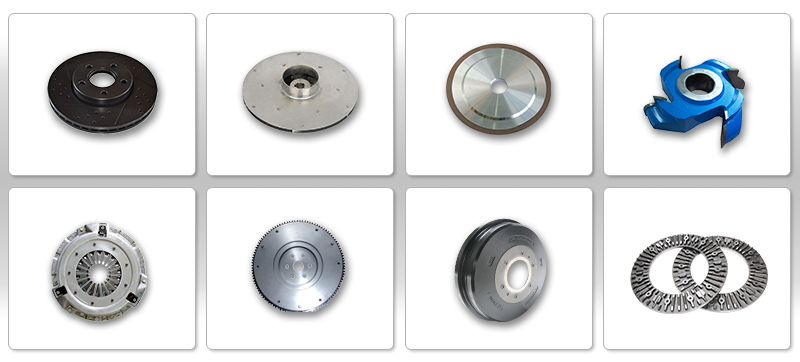

The machine is mainly suitable for dynamic balancing test of disc-shaped workpieces such as brake disc, brake drum, saw blade, pump impeller, flywheel, grinding wheel, and pulley.
Features
1.Pneumatic spindle design, can be equipped with convenient and fast pneumatic expansion fixture.
2.The brackets designed by Jianping can transmit mechanical force, which is firm and reliable, with small vibration damping and good rigidity.
3.High sensitivity sensor, good linearity, durable and reliable.
4.Calibration measurement principle, allowing high initial unbalance.
5.The weight removal device can be equipped as customer’s request.
Applicable to small workpieces
| Technical data at a glance | PHLD-5Q | PHLD-35Q | PRLD-35Q | PRLD-35DQ | PHLD-150Q | PHLD-350Q |
| Max Mass of Workpiece (kg) | 5 | 35 | 35 | 35 | 150 | 350 |
| Max Diameter of Workpiece (mm) | Φ350-500 | Φ400 | Φ400 | Φ400 | Φ600 | Φ600 |
| Height of workpiece(mm) | 120 | 200 | 200 | 200 | 200 | 200 |
| Spindle speed(r/min) | 1200 | 8004) | 8004) | 14004) | 4504) | 4504) |
| Motor power(kw) | 0.373) | 1.53) | 1.53) | 33) | 33) | 43) |
| Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg | 2g · mm/kg | 2g · mm/kg | 2g · mm/kg | 2g · mm/kg | 2g · mm/kg |
2) Without hood
4) Stepless speed regulation
5) DC Brushless
6) Servo Motor
