Your current location：> >> PRODUCTS >> Universal Balancers >> Self-Driven Balancer
Self Drive Balancing Machines
Describe Parameter Photo Video Download Get a Quote
Application

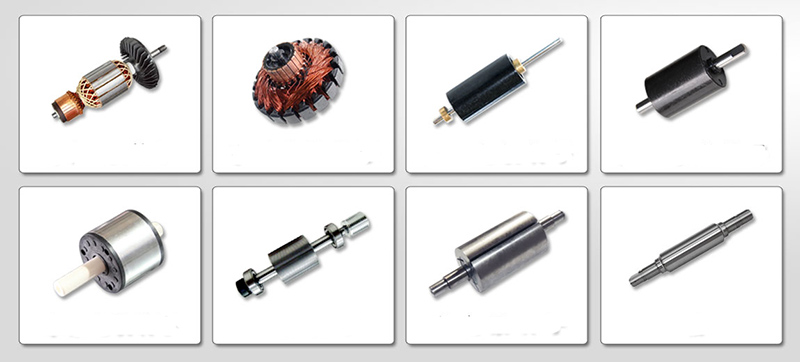

The soft-bearing self-driven balancing machine is suitable for the dynamic unbalance test of micro and small motor rotors.
Features
1. Developed for the dynamic balancing requirements of miniature rotors
2. Dual drive unit, can be used for overall balancing
3. The bearing pedestal adopts a soft-bearing structure
4. Use sensor to achieve the measurement accuracy required by dynamic balancing
5. Jianping measuring system, friendly HMI, easy to operate

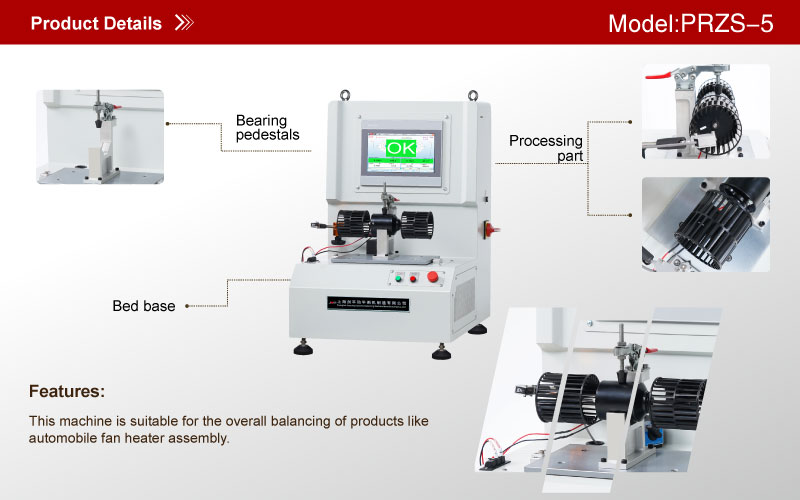

Soft Bearing Self Drive Balancing Machine
| Technical data at a glance | PRZS-0.3 | PRZS-1.1 | PRZS-5 |
| Max Mass of Workpiece (kg) | 0.3 | 1.1 | 5 |
| Max diameter of Workpiece(mm) | 40 | 80 | 300 |
| Min Achievable Residual Unbalance Amount (emar) | 0.15g· mm/kg | 0.15g· mm/kg | 0.15g· mm/kg |
Hard Bearing Self Drive Balancing Machine
| Technical data at a glance | PHZS-30 | PHZS-50 | PHZS-160 |
| Max Mass of Workpiece (kg) | 30 | 50 | 160 |
| Max Diameter of Workpiece(mm) | Φ550 | Φ550 | Φ800 |
| Distance Between Two Support Bearings(mm) | 300 | 40-700 | 40-1070 |
| Power | AC220V, Single-Phase, 50/60HZ | AC220V, Single-Phase, 50/60HZ | AC220V, Single-Phase, 50/60HZ |
| Min Achievable Residual Unbalance Amount (emar) | 1g· mm/kg | 1g· mm/kg | 1g· mm/kg |
