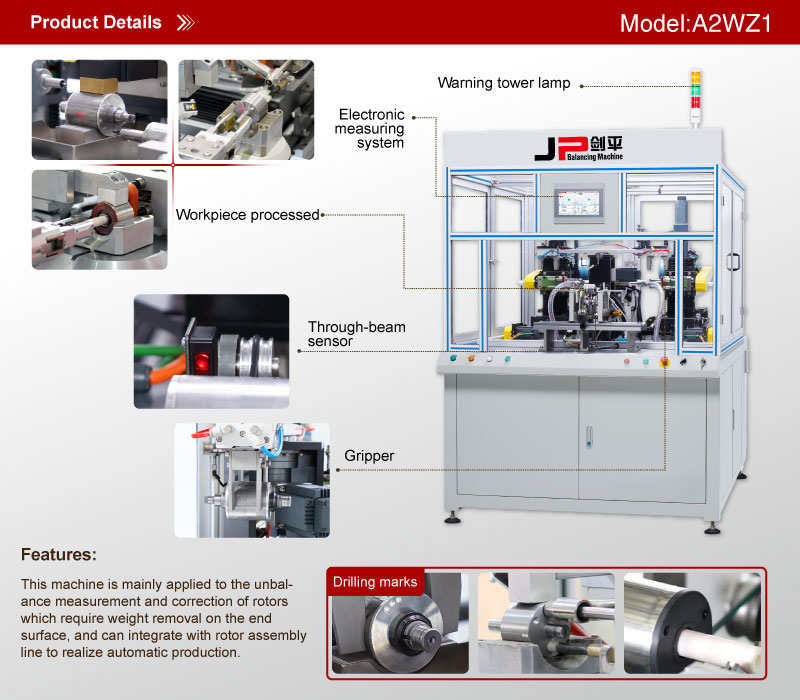

Two-station Motor Rotor Automatic Balancer

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

It is mainly applied to the unbalance measurement and correction of rotors and those rotors which require weight removal on the end surface, and can integrate with rotor assembly line to realize automatic production.


Features

1.Balancing and weight removal is one-time completion, one machine just requires one person.

2.Fast production cycle time, higher once reduction ratio.

3.Convenient for product changeover, just replace the product fixture and adjust the sensor position.

4.HMI with memory function for production capacity and real-time production information.

5.Rigid structure design, high service life.


Two-station Motor Rotor Automatic Balancer

Technical data at a glance

A2WZ1
Main Components

Cylinder:SMC.

Sensor:KEYENCE,OMRON.

Servo motor:Panasonic

Control PLC:SIEMENS

Touchscreen:Nuodajia

Measuring System:Shanghai Jianping

Rotor Diameter Range

The rotor weight less than 0.5KG.

length of Iron core :20-60mm

Diameter of rotor:25-40

Balancing Speed

1000-3000rpm

Milling Method

Double cutter drilling

Power

AC380V

Pneumatic

0.4-0.6Mpa

Residual unbalance eccentricity

G=6.3

Dimension

1130*1200*1700mm
