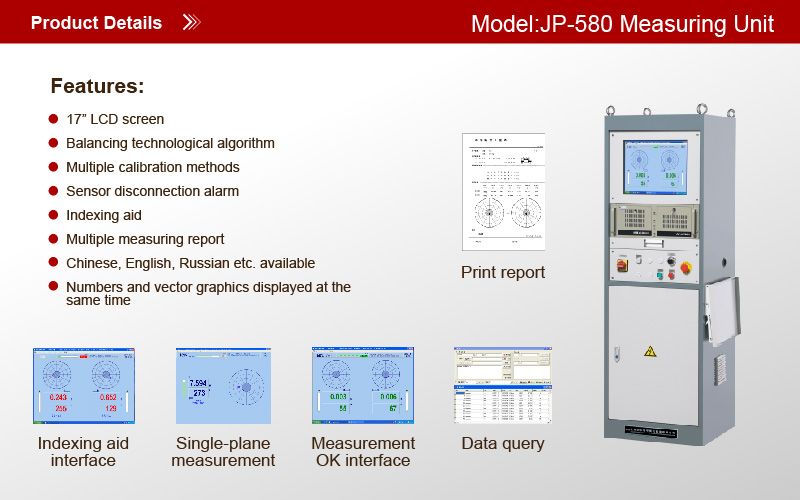

JP-580 Measuring Unit
Describe Parameter Photo Video Download Get a Quote
The JP-580 electronic measuring system can be adapted to various single/double-plane and soft/hard-bearing balancing machines, and can be conveniently and flexibly connected to various speed sensors and piezoelectric sensors.
JP-580 electronic measuring unit adopts Advantech industrial host, 17-inch LCD screen, Windows XP operating system, fast running speed, high reliability, strong dustproof and shockproof performance, and can adapt to various industrial environments. The data is highly versatile, and can output data through standard interfaces.
Speed range: 120-12000r/min
Min. resolution: 0.001mg
Min. measurement time: 3s
Measurement dynamic range 1: 100000
- Various Measuring Methods Dynamic balancing, static balancing, support modes up to 10 kinds.
- High measurement accuracy Using a combination of multiple scaling coefficients, automatic adjustment of system sensitivity, no jumping in shifting, double filtering of software and hardware, data compression, and stable measurement.
- DIY Unit Customized unit of unbalance amount and angle for display. A real-time unit conversion is available to meet different customers' requirements.
- Complete Compensation Electric compensation, flat key compensation, clamp compensation, clamp compensation turning over up to 9 times.
- Technological Algorithm Indexing algorithm, drilling algorithm and crankshaft algorithm.
- Complete Calibration Process Specialized calibration interface provides more convenience for maintenance. Up to 10 calibration stages. Real-time verification for calibration coefficient, also match with linear chart.
- Sensor Disconnection Alarm Automatic diagnosis of sensor disconnection, promptly alarm to avoid false balance of the work piece.
- Multi-language Display language and print report language are available in Chinese, English, Russian etc.
- Convenient Operation The measured value display uses a combination of numbers and vector graphics. All system parameters have prompt information, including parameter definition and setting range. The calibration process is guided.
- Large Storage of Data Database storage. Limitless storage of rotor data and clamp compensation data, and measured records are 10000 cycle records.
- History Automatically record the past measured value, optional methods of recording.
- Excellent Commonness of Files Database files can be opened in Office. Operations like “Find”,“Stats”, “Filter”, “Classify” and “Export” are available via the ancillary database query software.
- Multiple Measuring Report Measuring report, balancing report, single-plane measuring report etc. Note information for rotor data can be added anytime and displayed in the report.
- Multi-balancer Integrated Management (Additional module) A monitoring center can be established to monitor the measurement status of multiple balancing machines in real time, and effectively manage the data.
- Indexing Aid (Additional module) The cursor on the vector can indicate the present angle position of the rotor, convenient for users to find the unbalance point.
JP-380 Electrical Measuring unit is a Micro-computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor,The measuring unit can show rotating speed,measured value,and phase position intuitively with options of six support models available while the piezoelectrical sensor possesses a large capacity of output,small volume and high stability
FUNCTION INTRODUCTION
1. Digital Display of measured value and angle,direct and easy to read
2. Intel 8051 chip,safe reliable and fast
3. Imported components with lower failure rate
4. Multi-methods of compensation
5. Auto lock of rotating speed
ADVANTAGES
1. Coming with Intel 8051Microcontroller Unit, The main machine system is highly stable and anti-jamming
2. Digital-tube display,Direct and easy to read
3. The High-quality main components are imported from the America and Japan
4. The data collecting system employs automatic programmed amplifier and high-performance filter with the dynamic measuring range being more than 80DB
JP-580B Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen ,1G memory ,Electric board 4 G Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
FEATURES
1. LCD of 15inches
2. Windows XP Operating System
3. Chinese or English Display
4. Storage for 1000 sorts of rotor parameter and 10000 items of measuring records
5. Sophisticated balancing software
6. Multi-methods of algorithms
7. 10-stage calibration offers higher precision
8. Multi-methods of Compensation
9. Auxiliary display for drilling and cutting
TECHNOLOGICAL DATE:
1. Scope of RPM: 120-12000 r/min
2. Minimum resolution: 0.001mg
3. Shortest measuring time: 3s
4. Measurable dynamic range:1:100000
FEATURES OF PRODUCTS:
1. Various Measuring Methods: dynamic balancing, static balancing or both, ten support
modes, adding or reducing weight and CW or CCW rotating can be customized flexibly.
modes, adding or reducing weight and CW or CCW rotating can be customized flexibly.
2. High Precision: multi-Calibration coefficient combination, automatically adjust the
system sensitivity, no shift-skip,dual wave filtration by both hard and soft-ware,highspeed
data compression, faster,more stable and accurate measurement.
system sensitivity, no shift-skip,dual wave filtration by both hard and soft-ware,highspeed
data compression, faster,more stable and accurate measurement.
3. DIY unit:Balance unit displayed, angle unit and precision displayed can be defined by
user.A real-time unit conversion is available to meet different requirement.
user.A real-time unit conversion is available to meet different requirement.
4. Complete compensation,flat key compensation,fixture compensation,up to 9 times of
dislocation of fixtures.
dislocation of fixtures.
5. Technological algorithm:Indexing Algorithm,Drilling Algorithm, Milling Algorithm and
Crankshaft Algorithm.
Crankshaft Algorithm.
6. Consummate Calibration Process:Specialized Calibration interface is provides more
convenience for maintenance.Up to 10 Calibration segments.Real-time verification of
Calibration with linear chart.
convenience for maintenance.Up to 10 Calibration segments.Real-time verification of
Calibration with linear chart.
7. Sensor disconnection alarm:Automatic diagnosis of sensor disconnection, Prompt
evading of false balance.
evading of false balance.
8. Bilingual:Optional language of English or Chinese for display and report form printing.
9. Convenient Operation:Numeric and vector-combined display of measured values.Hint
for all the definings of parameter and the setup of domain.
for all the definings of parameter and the setup of domain.
10. Large storage of data:Database storage.Limitless storage of Rotor data, jig data and
10000 pieces of measured loop records.
10000 pieces of measured loop records.
11. History:Auto record of history,Optional methods of recording.
12. Good commonness of data:Database files can be opened in MS Office.Operations like“Find”, ”Stats”, ”Filter”, ”Classify” and ”Leadout” are available via the ancillary software.
13. Multi-report Form of Measurement:Measurement report-form, Balance Report-form,
Single-plane Measurement Report-form, etc. Note information for motor data can be
added anytime and displayed in report-form.
Single-plane Measurement Report-form, etc. Note information for motor data can be
added anytime and displayed in report-form.
OPTIONAL CONFIGURATION
1. General management of multi-balancer: Able to establish a monitor-center for
synchronous monitoring work process of more than one balancer and effective
manipulation of the data
synchronous monitoring work process of more than one balancer and effective
manipulation of the data
2. Cursor Guides the Angle:The cursor can show the phase position of the rotor in the
extra-added module,which can help user to find the unbalance point
extra-added module,which can help user to find the unbalance point
JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Advantech Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
FEATURES
1. LCD of 17 inches
2. Windows XP Operating System
3. Chinese or English Display
4. Storage for 1000 sorts of rotor parameter and 10000 items of measuring records
5. Sophisticated balancing software
6. Multi-methods of algorithms
7. 10-stage calibration offers higher precision
8. Multi-methods of Compensation
9. Auxiliary display for drilling and cutting
TECHNICAL DATE:
1. Scope of RPM: 120-12000 r/min
2. Minimum resolution: 0.001mg
3. Shortest measuring time: 3s
4. Measurable dynamic range:1:100000
FEATURE OF PRODUCTS:
1. Various Measuring Methods: dynamic balancing, static balancing or both, ten support
modes, adding or reducing weight and CW or CCW rotating can be customized flexibly.
modes, adding or reducing weight and CW or CCW rotating can be customized flexibly.
2. High Precision: multi-Calibration coefficient combination, automatically adjust the
system sensitivity, no shift-skip,dual wave filtration by both hard and soft-ware,highspeed
data compression, faster,more stable and accurate measurement.
system sensitivity, no shift-skip,dual wave filtration by both hard and soft-ware,highspeed
data compression, faster,more stable and accurate measurement.
3. DIY unit:Balance unit displayed, angle unit and precision displayed can be defined by
user.A real-time unit conversion is available to meet different requirement.
user.A real-time unit conversion is available to meet different requirement.
4. Complete compensation,flat key compensation,fixture compensation,up to 9 times of
dislocation of fixtures.
dislocation of fixtures.
5. Technological algorithm:Indexing Algorithm,Drilling Algorithm, Milling Algorithm and
Crankshaft Algorithm.
Crankshaft Algorithm.
6. Consummate Calibration Process:Specialized Calibration interface is provides more
convenience for maintenance.Up to 10 Calibration segments.Real-time verification of
Calibration with linear chart.
convenience for maintenance.Up to 10 Calibration segments.Real-time verification of
Calibration with linear chart.
7. Sensor disconnection alarm:Automatic diagnosis of sensor disconnection, Prompt
evading of false balance.
evading of false balance.
8. Bilingual:Optional language of English or Chinese for display and report form printing.
9. Convenient Operation:Numeric and vector-combined display of measured values.Hint
for all the definings of parameter and the setup of domain.
for all the definings of parameter and the setup of domain.
10. Large storage of data:Database storage.Limitless storage of Rotor data, jig data and
10000 pieces of measured loop records.
10000 pieces of measured loop records.
11. History:Auto record of history,Optional methods of recording.
12. Good commonness of data:Database files can be opened in MS Office.Operations like“Find”, ”Stats”, ”Filter”, ”Classify” and ”Leadout” are available via the ancillary software.
13. Multi-report Form of Measurement:Measurement report-form, Balance Report-form,
Single-plane Measurement Report-form, etc. Note information for motor data can be
added anytime and displayed in report-form.
Single-plane Measurement Report-form, etc. Note information for motor data can be
added anytime and displayed in report-form.
OPTIONAL CONFIGURATION
1. General management of multi-balancer: Able to establish a monitor-center for
synchronous monitoring work process of more than one balancer and effective
manipulation of the data
synchronous monitoring work process of more than one balancer and effective
manipulation of the data
2. Cursor Guides the Angle:The cursor can show the phase position of the rotor in the
extra-added module,which can help user to find the unbalance point
extra-added module,which can help user to find the unbalance point
JP-680A/680B/680 Electrical Measuring unit
CONFIGURATION
1.15-inch touch screen/10-inch touch screen/12-inch touch screen
2.Win CE operating system
FEATURES
1.Touch-screen operation:Man-machine friendly interface,operate more convenient
2.Chinese english display:Display language can be changed between Chinese and English.
3.Intuitive:
1)Measured value display is a combination of numbers and vector graphics,Vector graphics can quickly detect the amount degree of imbalance and angle orientation,Graphic scale values can be adjustable,Easy to set up various grades.
2)There are tips for all system parameter,including parameter definitions and setting range. Easy for users to quick start
3)Automatically determine whether the rotor is quality.There are colored tips
4)Flexible calibration mode,Process also has the guide's instructions.More professional calibration interface,easy to maintain,Calibration process arbitrary execution,it display original measurement data,up to 100 calibration stages
4.High precision display:Minimum resolution of 0.001mg.
5.Measurement speed:120-12000r/min
6.Single/double plane balancing measure:Balancing measure has double plane dynamic balancing, single-plane static balance and static and dynamic balance methods to choose
7.Variety of supporting mode:Traditional six kinds of double-plane and single-plane supporting mode.wide range of application
8.Diversity of calculation method:With a mathematical model and a physical model calculation way,Applicable for all kinds of hard bearing and soft bearing balancing machine
9.Sensor detection:Can diagnose sensor or whether the sensor is faulty, to avoid workpiece false balance
10.Electronic compensating:With electrical compensation,Treat common rotor as test rotor,applicable for all conditions,Debugging more convenient, system model is more in line with the actual situation
11.Indexing function:Solving the balancing problem of rotor blade ,display unbalance amount of each blade directly
12.Unbalance calculation:Software in accordance with the ISO1940 standard, built-in allowable unbalance calculate,just input related parameter,we can calculate the allowable unbalance amount directly
13.Waveform Display:You can see the waveform amplitude signal acquisition.
14.USB Data Export:Measurement data can be exported through U disk.
15.100 Rotor data storage:Rotor data can be saved for next measure use
16.Data Printing:Print report contains rotor parameters, correction plane information, eligibility criteria, measurement data, vector and qualified judgment and other information, for A4 paper format
17.Calculator
18.Calendar
3.Intuitive:
1)Measured value display is a combination of numbers and vector graphics,Vector graphics can quickly detect the amount degree of imbalance and angle orientation,Graphic scale values can be adjustable,Easy to set up various grades.
2)There are tips for all system parameter,including parameter definitions and setting range. Easy for users to quick start
3)Automatically determine whether the rotor is quality.There are colored tips
4)Flexible calibration mode,Process also has the guide's instructions.More professional calibration interface,easy to maintain,Calibration process arbitrary execution,it display original measurement data,up to 100 calibration stages
4.High precision display:Minimum resolution of 0.001mg.
5.Measurement speed:120-12000r/min
6.Single/double plane balancing measure:Balancing measure has double plane dynamic balancing, single-plane static balance and static and dynamic balance methods to choose
7.Variety of supporting mode:Traditional six kinds of double-plane and single-plane supporting mode.wide range of application
8.Diversity of calculation method:With a mathematical model and a physical model calculation way,Applicable for all kinds of hard bearing and soft bearing balancing machine
9.Sensor detection:Can diagnose sensor or whether the sensor is faulty, to avoid workpiece false balance
10.Electronic compensating:With electrical compensation,Treat common rotor as test rotor,applicable for all conditions,Debugging more convenient, system model is more in line with the actual situation
11.Indexing function:Solving the balancing problem of rotor blade ,display unbalance amount of each blade directly
12.Unbalance calculation:Software in accordance with the ISO1940 standard, built-in allowable unbalance calculate,just input related parameter,we can calculate the allowable unbalance amount directly
13.Waveform Display:You can see the waveform amplitude signal acquisition.
14.USB Data Export:Measurement data can be exported through U disk.
15.100 Rotor data storage:Rotor data can be saved for next measure use
16.Data Printing:Print report contains rotor parameters, correction plane information, eligibility criteria, measurement data, vector and qualified judgment and other information, for A4 paper format
17.Calculator
18.Calendar
JP-800 Electrical Measuring unit is a powerful and high precision measuring system which is newly researched and developed by Shanghai Jianping dynamic balancing machine manufacturing Co.,Ltd.It is applied to various kinds of single-plane/double-plane balancing machine and soft-bearing/hard-bearing balancing machine. And it is convenient and flexible to match with various speed sensors and piezoelectric sensors
It features powerful functions, wide application, high efficiency, high data versatility as well as outputting data through standard interface.Perfect combination of mainstream man-machine interface and PLC can achieve various customization and meet more functions’ inputting and outputting.
FEATURE OF PRODUCTS:
2.Functional characteristics:Touch-screen operation,Friendly man-machine interface, convenient and fast operation
3.Multi-account management:Has “ administrator”, “ inspector” and “operator” three accounts and passwords.
It features powerful functions, wide application, high efficiency, high data versatility as well as outputting data through standard interface.Perfect combination of mainstream man-machine interface and PLC can achieve various customization and meet more functions’ inputting and outputting.
SYSTEM FEATURES
1. Touch-screen operation
2. Multi-account management
3. Multi-language display
4. Visual interface, guided operation
5. Single-plane, double-plane, three-plane dynamic balancing measurement
6. Rotor parameters
7. History
8. Alarm message
9. Data printing
10. Remote assistance
FEATURE OF PRODUCTS:
1.Configuration:12” man-machine interface .Win CE operating system
2.Functional characteristics:Touch-screen operation,Friendly man-machine interface, convenient and fast operation
3.Multi-account management:Has “ administrator”, “ inspector” and “operator” three accounts and passwords.
According to different roles, user can create different accounts, passwords and permissions, as well as open corresponding functions. Which is very convenient for personnel and equipment management.
4.Multi-language display:Chinese, English, Arabic, Portuguese, French, Thai, Spanish, Russian are selectable
5.Visual interface:The display of measured value is a combination of numbers and vector graphics which can quickly sense the magnitude and angle of unbalance.Automatically judge whether the rotor is qualified or not, with color hint.Flexible calibration methods
6.Single-plane, double-plane, three-plane dynamic balance measurement:Double-plane dynamic balancing measurement, single-plane static balance measurement and three-plane balancing measurement are selectable.
7.Rotor parameters:Recipe storage, can use English unit.
8.History:There are a variety of recording options in the setting, the history can be exported, backup server and be deleted, the default is administrator access.
9.Alarm message:When equipment failure occurs, all the alarm messages can be seen in the alarm.
10.Data Printing:Can be connected to the user's server for printing and backup, as long as the equipment IP address network segment is consistent with the server network segment. User can also use the local printer for dynamic balancing report printing
11.Remote assistance:As long as our company has opened the remote function for your equipment, no matter which country you are located in, you only need to connect the equipment to the network. Our company can provide you with remote assistance fault diagnosis service and real-time service
4.Multi-language display:Chinese, English, Arabic, Portuguese, French, Thai, Spanish, Russian are selectable
5.Visual interface:The display of measured value is a combination of numbers and vector graphics which can quickly sense the magnitude and angle of unbalance.Automatically judge whether the rotor is qualified or not, with color hint.Flexible calibration methods
6.Single-plane, double-plane, three-plane dynamic balance measurement:Double-plane dynamic balancing measurement, single-plane static balance measurement and three-plane balancing measurement are selectable.
7.Rotor parameters:Recipe storage, can use English unit.
8.History:There are a variety of recording options in the setting, the history can be exported, backup server and be deleted, the default is administrator access.
9.Alarm message:When equipment failure occurs, all the alarm messages can be seen in the alarm.
10.Data Printing:Can be connected to the user's server for printing and backup, as long as the equipment IP address network segment is consistent with the server network segment. User can also use the local printer for dynamic balancing report printing
11.Remote assistance:As long as our company has opened the remote function for your equipment, no matter which country you are located in, you only need to connect the equipment to the network. Our company can provide you with remote assistance fault diagnosis service and real-time service
