Propeller Single-plane Vertical Balancer

立式竖钻全自动平衡机

Application

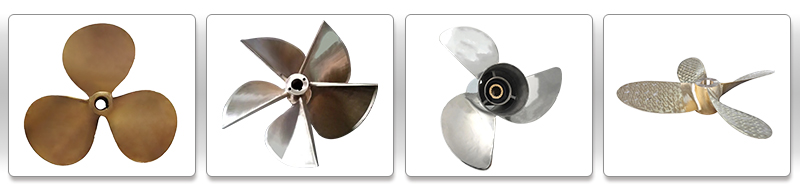

This machine is suitable for unbalance detection of various marine propellers and propeller blades.

Feature

1.The brackets designed by Jianping can transmit mechanical force, which is firm and reliable, with small vibration damping and good rigidity.

2.High sensitivity sensor, good linearity, durable and reliable.

3.Calibration measurement principle, allowing high initial unbalance.

4.Equipped with a special fixture, more convenient for clamping.

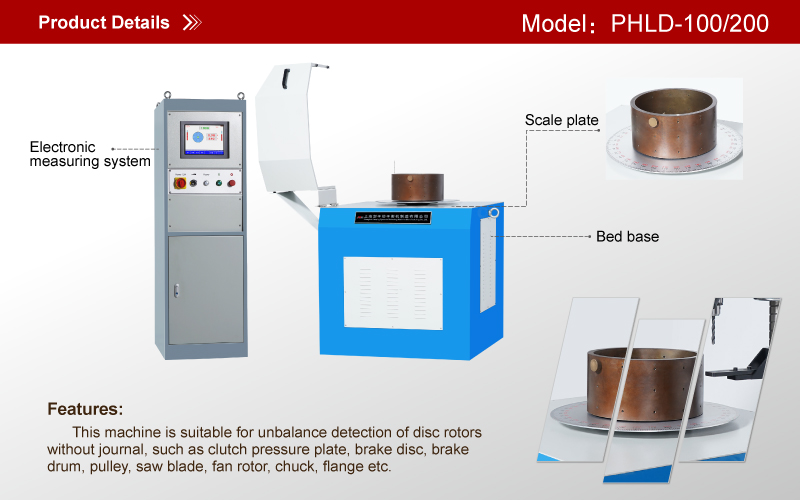

5.Electronic measurement system, friendly HMI, powerful functions.

6.The weight removal device can be equipped as customer’s request.

Applicable to medium workpieces

Technical data at a glance	PHLD-42H	PHLD-65H	PHLD-100	PHLD-150Q	PHLD-200	PHLD-350Q
Max Mass of Workpiece (kg)	42	65	100	150	200	350
Max Diameter of Workpiece (mm)	510¹⁾ 800²⁾	510¹⁾ 800²⁾	600¹⁾ 1000²⁾	Φ600	600¹⁾ 1000²⁾	Φ600
Height of workpiece(mm)	160	160	200	300	200	300
Spindle speed(r/min)	800	700	~600⁴⁾	~450⁴⁾	~600⁴⁾	~450⁴⁾
Motor power(kw)	1.5³⁾	2.2³⁾	3³⁾	3³⁾	4³⁾	4³⁾
Min Achievable Residual Unbalance Amount (emar)	1g · mm/kg	1g · mm/kg	1g · mm/kg	1g · mm/kg	1g · mm/kg	1g · mm/kg

2) Without hood

3) Frequency conversion
4) Stepless speed regulation
5) DC Brushless
6) Servo Motor
