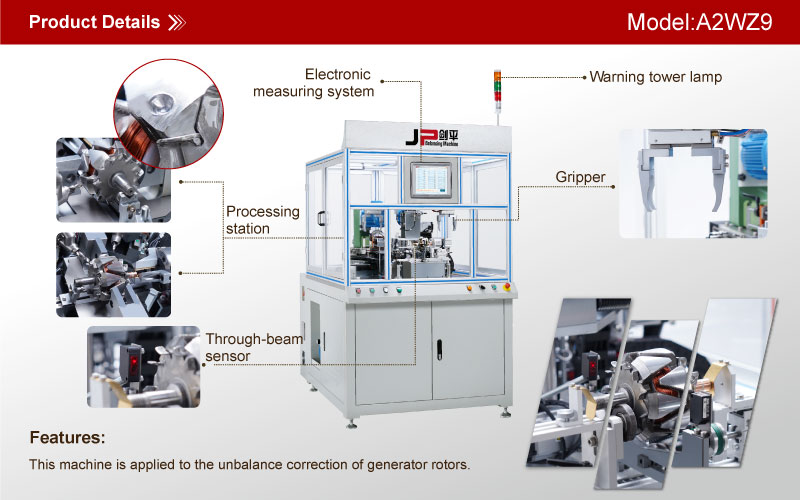

Two-station Generator Rotor Automatic Balancer
Describe Parameter Photo Video Download Get a Quote
Application

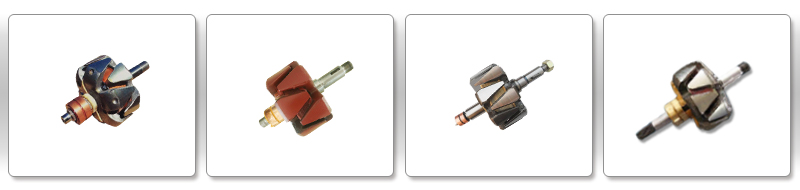

It is applied to the unbalance correction of generator rotors, suitable for mass production of generator rotors.
Features
1.Manual loading & unloading
2.Can meet multi-angle weight removal
3. Rigid structure design, long service life
4.JP-900 Electronic measurement system, 10 inch touch screen
5.HMI with memory function for production capacity and real-time production information
Generator Rotor Drilling Two-Station Automatic Balancing Machine
Technical data at a glance | A2WZ9 |
| Max Weight of Workpiece (kg) | 5 |
Max Diameter of Workpiece (mm) | 40-120 |
| Rotor Stack Thickness (mm) | 30-120 |
| Journal Diameter (mm) | φ8-34 |
Balancing Speed (r/min) | ≤2500 |
Balancing Motor Power (kw) | 0.4 KW Servo Motor |
| Min Achievable Residual Unbalance Amount (g.mm/kg) | ≤0.3 |
Testing Time (second) | 8-12 |
| Reduction Rate of Unbalance | ≥90% |
| Working Pressure (MPa) | 0.4-0.6 |
| Operating Voltage (V) | AC: 380V external |
| Weight-Removing Method | Drilling |
| Drilling Power (kw) | 0.75 |
| Balancing Machine Type | Soft Bearing Measuring Bracket |
| Machine Power (kw) | 6.75 |
| Average Machine Consumption(l/min) | 60 |
| Protection | Phase sequence protection, overload protection, pressure monitoring |
