Your current location：> >> PRODUCTS >> Universal Balancers >> Double-Plane Vertical Balancer
Double-plane Vertical Pneumatic Spindle Balancer
Describe Parameter Photo Video Download Get a Quote
Application

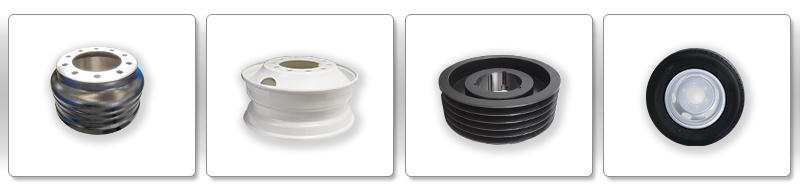

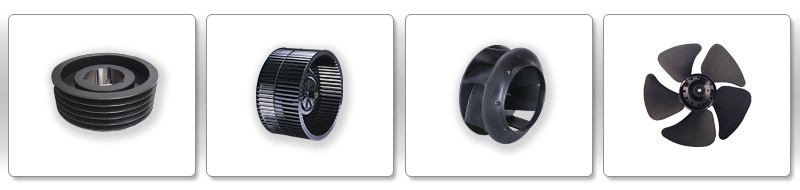

This machine is widely used in single/double-plane unbalance test of disc-shaped workpieces such as centrifugal fan, brake disc, brake drum, saw blade, water pump impeller, flywheel, grinding wheel and so on.
Features
1.Pneumatic spindle designed by Jianping is used to realize the pneumatic clamping and release of the fixture
2.Convenient loading and unloading, low labor intensity
3.Driven by frequency conversion motor, it can stepless speed regulation, smooth acceleration and deceleration
4.Simple, reliable and safe operation
Dual-Plane Vertical Balancing Machines
| Technical data at a glance | PHLS-5Q | PHLS-35Q | PHLS-150Q | PHLS-350Q |
| Max Mass of Workpiece (kg) | 5 | 35 | 150 | 350 |
| Max Diameter of Workpiece (mm) | Φ350-500 | Φ400 | Φ600 | Φ600 |
| Height of workpiece(mm) | 130 | 220 | 300 | 300 |
| Spindle speed(r/min) | 1200 | 8004) | 4504) | 4504) |
| Motor power(kw) | 0.37 | 1.53) | 33) | 43) |
| Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 2g · mm/kg |
1) With hood
2) Without hood
2) Without hood
3) Frequency conversion
4) Stepless speed regulation
5) DC Brushless
6) Servo Motor
4) Stepless speed regulation
5) DC Brushless
6) Servo Motor
