Cross Flow Fan Blade Balancing Machines
Describe Parameter Photo Video Download Get a Quote
Application

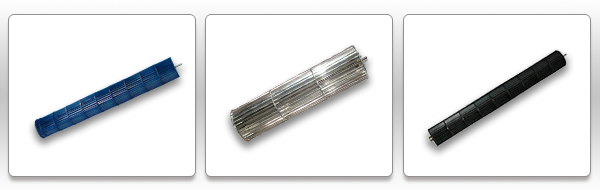

This machine is used in the unbalance detection of the cross-flow fan of split air conditioner, the cross-flow fan of automobile air conditioner heater and central air conditioner, the cross-flow fan of clothes dryer and air curtain machine etc.
Features
1.The brackets designed by Jianping can transmit mechanical force, which is firm and reliable, with low vibration damping and good rigidity
2.The sensor has good linearity, durable and reliable
3.Calibration measurement principle, allowing high initial unbalance
4.Belt drive structure, easy to load and unload
5.Electronic measurement system, friendly HMI
6.The mechanical transmission system adopts the actual working condition of the cross-flow fan blade, and there is no deformation effect caused by external force
7.The 0°-360° scale plate that rotates synchronously with the workpiece can easily find the unbalance position of the workpiece and improve work efficiency

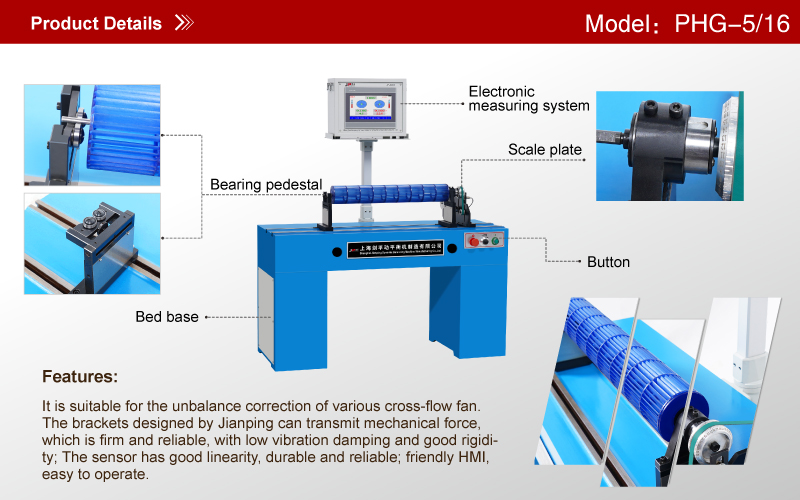

PHG-5 Cross Flow Fan Balancing Machine
| Technical data at a glance | PHG-5 |
| Max Mass of Workpiece (kg) | 5 |
| Max Diameter of Workpiece (mm) | 150 |
| The distance between two bearing pedestals | Min 60-900 |
| Length of workpiece(mm) | 900 |
| Journal diameter on roller carriages | Φ5~12 |
| Spindle speed(r/min) | 1470 stepless speed regulation |
| Motor power(kw) | 0.2DC |
| Min Achievable Residual Unbalance Amount (emar) | 0.5g· mm/kg |
PRGZ-5 Self Drive Cross Flow Fan Balancing Machine
| Technical data at a glance | PRGZ-5 |
| Max Mass of Workpiece (kg) | 5 |
| Min Achievable Residual Unbalance Amount (emar) | 0.15g· mm/kg |
PHG-5D/16D Auto-Positioning Cross Flow Fan Balancing Machine
| Technical data at a glance | PHG-5D |
| Max Mass of Workpiece (kg) | 5 |
| Max Diameter of Workpiece (mm) | 150 |
| The distance between two bearing pedestals | Min 60-900 |
| Length of workpiece(mm) | 900 |
| Journal diameter on roller carriages | Φ5~12 |
| Spindle speed(r/min) | 1470 stepless speed regulation |
| Motor power(kw) | 0.4 Servo |
| Min Achievable Residual Unbalance Amount (emar) | 0.5g· mm/kg |
