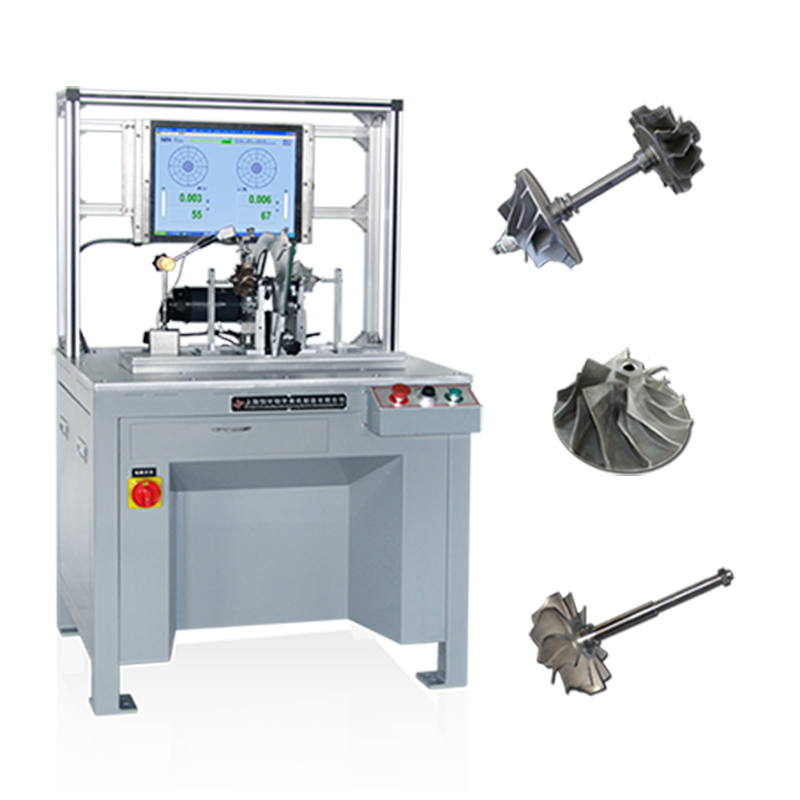

Balancing Machine Specially for Turbocharger
Describe Parameter Photo Video Download Get a Quote
Application
This machine is mainly suitable for dynamic unbalance detection of various automobile turbocharger rotors.
1.Balancing machines for turbocharger impellers
2.Balancing machines for turbocharger compressors
3.Balancing machines for turbocharger turbines
4.Auto-positioning bed.large tool carriage structure
5.Dedicated bracketdriven by Nylon belt variable speed motor 230W
Features
1.Adopt belt drive, hard-bearing brackets
2.Window 7/10 operating system, 17” LCD screen
3.Easy to install and remove, quick to start
Balancing Machine Specially for Turbocharger
| Technical data at a glance | PHY-1.6 | PHY-5 | PHY-16 |
| Max Mass of Workpiece (kg) | 1.6 | 5 | 16 |
| Max Diameter of Workpiece (mm) | Φ00 | Φ300 | Φ300 |
| Distance between Two Support Bearings (mm) | 60~400 | 60~400 | 60~400 |
| Journal Diameter Scope of Workpiece (mm) | Φ5~40 | Φ5~40 | Φ5~40 |
| Diameter Scope of Driving Belt (mm) | Φ15~150 | Φ15~150 | Φ15~150 |
| Rotational Speed when the Diameter of Driving Belt is100mm(r/min) | 14701) | 14701) | 14701) |
| Motor Power (kw) | 0.2DC | 0.2DC | 0.2DC |
| Min Achievable Residual Unbalance Amount (emar) | 0.15g · mm/kg | 0.15g · mm/kg | 0.15g · mm/kg |
1)Stepless speed regulation
