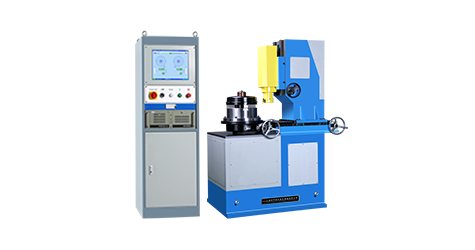

Differential Case Semi-automatic Balancer
Describe Parameter Photo Video Download Get a Quote
Application

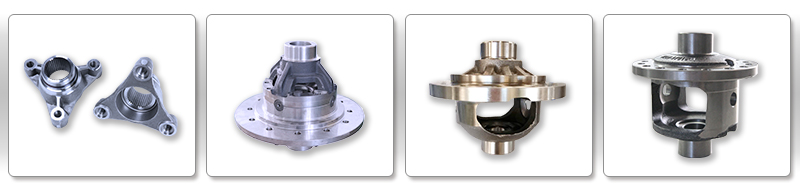

This machine is used for the unbalance correction of various differential cases. It has features of simple structure, easy maintenance, simple and convenient operation, and it has integrated dynamic unbalance measurement and correction.
Features
1. Simple structure and easy maintenance
2. Simple and convenient operation
3. The measuring fixture is a three-jaw chuck
4. Dynamic unbalance measurement & correction integration
Single-Plane Vertical Balancing Machines
Applicable to small workpieces
| Technical data at a glance | PRLD-0.5/0.5DQ | PRLD-3.5/3.5DQ | PHLD-5A | PHLD-5Q | PHLD-5H | PH2LD-5 | PHLD-16H | PHLD-35Q | PRLD-35Q/35DQ | PHLD2Q-35 | PHLD-35H |
| Max Mass of Workpiece (kg) | 0.5 | 3.5 | 5 | 5 | 5 | 5 | 16 | 35 | 35 | 35 | 35 |
| Max Diameter of Workpiece (mm) | Φ150 | Φ200 | 600 | Φ350-500 | Φ350-500 | Φ500 | 5101) 8002) | Φ400 | Φ400 | Φ580 | Φ180~450 |
| Height of workpiece(mm) | 50 | 120 | 120 | 120 | 130 | 120 | 160 | 200 | 220 | 185 | 200 |
| Spindle speed(r/min) | 36004) | 36004) | 900 | 1200 | 1200 | 12004) | 900 | 8004) | 8004)/14004) | 400~12004) | 800~850 |
| Motor power(kw) | 0.25)/0.16) | 0.25)/0.46) | 0.18 | 0.373) | 0.373) | 0.373) | 1.53) | 1.53) | 1.53)/36) | 1.53) | 1.53) |
| Min Achievable Residual Unbalance Amount (emar) | 0.5g · mm/kg | 0.5g · mm/kg | 2g · mm/kg | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 2g · mm/kg |
Applicable to medium workpieces
| Technical data at a glance | PHLD-42H | PHLD-65H | PHLD-100 | PHLD-150Q | PHLD-200 | PHLD-350Q |
| Max Mass of Workpiece (kg) | 42 | 65 | 100 | 150 | 200 | 350 |
| Max Diameter of Workpiece (mm) | 5101) 8002) | 5101) 8002) | 6001) 10002) | Φ600 | 6001) 10002) | Φ600 |
| Height of workpiece(mm) | 160 | 160 | 200 | 300 | 200 | 300 |
| Spindle speed(r/min) | 800 | 700 | ~6004) | ~4504) | ~6004) | ~4504) |
| Motor power(kw) | 1.53) | 2.23) | 33) | 33) | 43) | 43) |
| Min Achievable Residual Unbalance Amount (emar) | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg |
Applicable to large workpieces
| Technical data at a glance | PHLD-1100Q | PHLD-3500Q |
| Max Mass of Workpiece (kg) | 1100 | 3500 |
| Max Diameter of Workpiece (mm) | 1500 | 1500 |
| Height of workpiece(mm) | 500 | 500 |
| Spindle speed(r/min) | ~3404) | ~3404) |
| Motor power(kw) | 7.53) | 153) |
| Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg | 2g · mm/kg |
Dual-Plane Vertical Balancing Machines
| Technical data at a glance | PHLS-5Q | PHLS-35Q | PHLS-150Q | PHLS-350Q |
| Max Mass of Workpiece (kg) | 5 | 35 | 150 | 350 |
| Max Diameter of Workpiece (mm) | Φ350-500 | Φ400 | Φ600 | Φ600 |
| Height of workpiece(mm) | 130 | 220 | 300 | 300 |
| Spindle speed(r/min) | 1200 | 8004) | 4504) | 4504) |
| Motor power(kw) | 0.37 | 1.53) | 33) | 43) |
| Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 2g · mm/kg |
1) With hood
2) Without hood
2) Without hood
3) Frequency conversion
4) Stepless speed regulation
5) DC Brushless
6) Servo Motor
4) Stepless speed regulation
5) DC Brushless
6) Servo Motor
