Differential Case Axial Drilling Automatic Balancer

立式竖钻全自动平衡机

Application

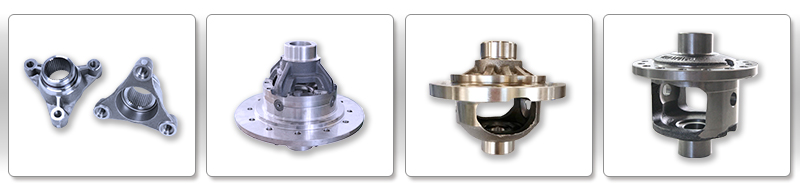

This machine is used for the unbalance correction of automobile differential cases.

Features

1.10 inch touch screen

2.Advanced balancing measurement software technology

3.Automatic measurement, automatic drilling & correction, automatic retest

4.Rigid structure design, long service life

5.The workpiece can be corrected more than twice

6.Manual loading & unloading

Single-Station Auto-Drilling Balancing Machine

Parameters of Balancing Unit	A1LZ1-5	A1LZ1-35	A1LZ1-150
Mass of Workpiece(kg)	5(clamp included)	35(clamp included)	150(clamp included)
Max Height of Workpiece (mm)	200	200	200
Max Diameter of Workpiece (mm)	40-400	100-400	200-600
Balancing Speed（r/min)	800	800	800
Motor Power（kw）	0.75	1.5	7.5
Min Achievable Residual Unbalance Amount (g.mm/kg)	3	3	3
Drilling Speed（r/min）	1500 frequency conversion	1500 frequency conversion	1500 frequency conversion
Cutting Spindle Motor Power(kw)	0.75	0.75	1.5
Max Allowed Correct Times	2	2	2
Machine Weight(ton)	1.5	1.5	2
Dimensions(mm)	95017002000	95017002000	95017002000
Pressure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6
Processing Period(s)	8-12	8-12	15-20
Total Power（kw）	7.5	8	15
Rotor thickness (mm)	150	150	200
Operating Voltage（v）	AC:380External	AC:380External	AC:380External
Drilling Method	Standard drill	Standard drill	Standard drill
Balancing Machine Type	Hard bearig bracket	Hard bearig bracket	Hard bearig bracket
Average Gas Consumption	6 L/min	6 L/min	6 L/min
Unbalance Reduction Rate	≥95%	≥95%	≥95%
Protection	Phase sequence protection. Overload protection. Pressure detection
