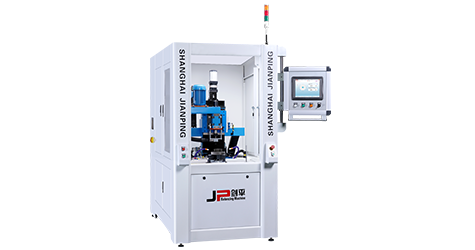

Gear Vertical Drilling Automatic Balancer
Describe Parameter Photo Video Download Get a Quote
Application
This machine is used for the unbalance correction of automobile gears.
Features
1.10 inch touch screen
2.Advanced balancing measurement software technology
3.Automatic measurement, automatic drilling & correction, automatic retest
4.Rigid structure design, high service life
5.The workpiece can be corrected more than twice
6.Manual loading & unloading
Single-Station Auto-Drilling Balancing Machine
| Parameters of Balancing Unit | A1LZ1-5 | A1LZ1-35 | A1LZ1-150 |
| Mass of Workpiece(kg) | 5(clamp included) | 35(clamp included) | 150(clamp included) |
| Max Height of Workpiece (mm) | 200 | 200 | 200 |
| Max Diameter of Workpiece (mm) | 40-400 | 100-400 | 200-600 |
| Balancing Speed（r/min) | 800 | 800 | 800 |
| Motor Power（kw） | 0.75 | 1.5 | 7.5 |
| Min Achievable Residual Unbalance Amount (g.mm/kg) | 3 | 3 | 3 |
| Drilling Speed（r/min） | 1500 frequency conversion | 1500 frequency conversion | 1500 frequency conversion |
| Cutting Spindle Motor Power(kw) | 0.75 | 0.75 | 1.5 |
| Max Allowed Correct Times | 2 | 2 | 2 |
| Machine Weight(ton) | 1.5 | 1.5 | 2 |
| Dimensions(mm) | 950*1700*2000 | 950*1700*2000 | 950*1700*2000 |
| Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Processing Period(s) | 8-12 | 8-12 | 15-20 |
| Total Power（kw） | 7.5 | 8 | 15 |
| Rotor thickness (mm) | 150 | 150 | 200 |
| Operating Voltage（v） | AC:380External | AC:380External | AC:380External |
| Drilling Method | Standard drill | Standard drill | Standard drill |
| Balancing Machine Type | Hard bearig bracket | Hard bearig bracket | Hard bearig bracket |
| Average Gas Consumption | 6 L/min | 6 L/min | 6 L/min |
| Unbalance Reduction Rate | ≥95% | ≥95% | ≥95% |
| Protection | Phase sequence protection. Overload protection. Pressure detection | ||
