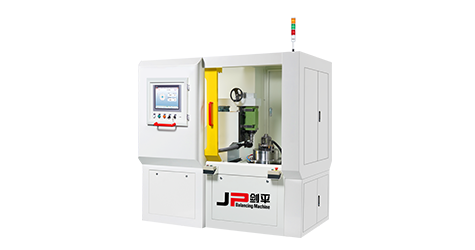

Differential Case Vertical Milling Automatic Balancer
Describe Parameter Photo Video Download Get a Quote
Application

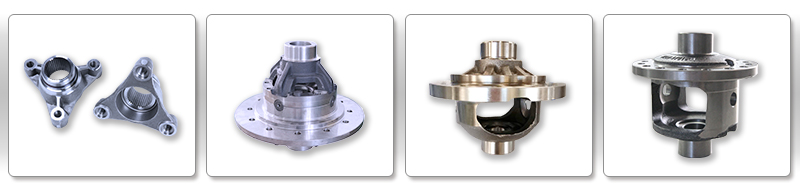

It is used for the automatic unbalance correction of automobile differential cases. It adopts Shanghai Jianping dynamic balancing machine technology. The disc-shaped workpiece is fully automated from unbalance measurement, angle positioning, milling weight removal to retest; it has features of high speed and high precision, suitable for mass production of disc-shaped workpieces.
Features
1.Manual loading & unloading
2.15 inch touch screen
3.Advanced balancing measurement software technology
4.Automatic measurement, automatic drilling & correction, automatic retest
5.Ergonomic structure design, high machine use efficiency
Automatic Vertical Balancing Correction Machine
| Technical data at a glance | A1LX20-5-200 | A1LX20-35-400 | A1LX20-150-600 |
| Max Mass of Workpiece(kg) | 5 | 35 | 150 |
| Max Diameter of Workpiece (mm) | 200 | 400 | 600-750 |
| Spindle Speed (r/min) | 800 | 800 | 800 |
| Motor Power(kw) | 1 | 3 | 11-15 |
| Min Achievable Residual Unbalance Amount (emar) | 3g· mm/kg | 3g· mm/kg | 3g· mm/kg |
| Working Pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa |
| Operating Voltage | AC:380V External | AC:380V External | AC:380V External |
| Thickness of Workpiece Weight Removal | 8-110mm | 8-110mm | 8-110mm |
| Milling Angle(degree) | 90-75 | 90-75 | 90-75 |
| Power(kw) | 5 | 8.5 | 20 |
| Milling Motor Power(kw) | 1.5 | 3 | 7.5 |
| Unbalance Reduction Rate | ≥90% | ≥90% | ≥90% |
| Processing Period(s) | 6-10 | 8-12 | 15-20 |
| Weight(ton) | 1.8 | 1.8 | 2 |
| Dimensions(mm) | 900*2300*2030 | 900*2300*2030 | 900*2300*2030 |
| Protection | Phase sequence protection. Overload protection. Pressure detection | ||
