Micro Auto Positioning Balancing Machine
Describe Parameter Photo Video Download Get a Quote
Application

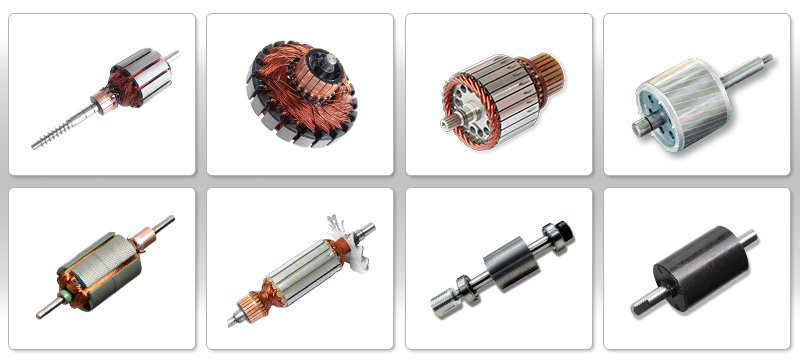

Suitable for large batch balancing of miniature shaft rotors such as micro-motors and electric tools.
Features
1.Adopt Jianping drive device, which can realize accurate automatic positioning
2.Automatically stop if the measurement is qualified, and automatically stop at the unbalanced point if it is not qualified
3.Avoid manual looking for angles, thereby improving work efficiency
4.Down-cut belt drive is convenient for loading & unloading
5.Touch screen HMI, easy to operate
6.Jianping balancing machine measurement software
PHQ-1.6D/5D/16D Auto Positioning Balancing Machine (Harding Bearing)
| Technical data at a glance | PHQ-1.6D/5D/16D | PHQ-G5D/16D |
| Max Mass of Workpiece (kg) | 1.6/5/16 | 5/16 |
| Max Diameter of Workpiece (mm) | Φ260 | Φ300 |
| Distance between Two Support Bearings (mm) | 40~500 | 15~500 |
| Journal Diameter Scope of Workpiece (mm) | Φ3~30 | Φ3~40 |
| Diameter Scope of Driving Belt (mm) | Φ20~200 | Φ20~200 |
| Rotational Speed when the Diameter of Driving Belt is100mm(r/min) | ~14701) | ~14101) |
| Motor Power (kw) | 0.4 servo motor | 0.2 DC motor |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.15g· mm/kg | ≤0.15g· mm/kg |

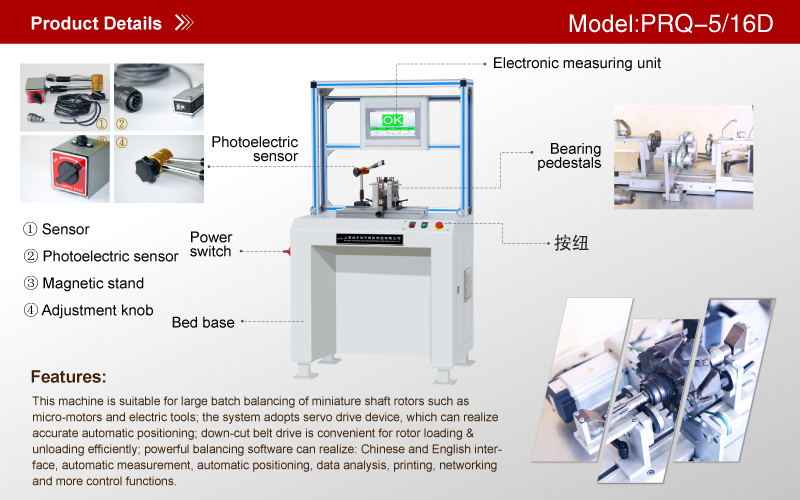

PRQ-0.5D/1.6D/5D/16D Auto Positioning Balancing Machine (Soft Bearing)
| Technical data at a glance | PRQ-0.5D/1.6D | PRQ-5D/16D |
| Max Mass of Workpiece (kg) | 0.5/1.6 | 5/16 |
| Max Diameter of Workpiece (mm) | Φ150 | Φ350 |
| Distance between Two Support Bearings (mm) | 20~320 | 20~320 |
| Diameter Scope of Driving Belt (mm) | Φ10~50 | Φ5~200 |
| Rotational Speed when the Diameter of Driving Belt is100mm(r/min) | ~14701) | ~14701) |
| Motor Power (kw) | 0.1 servo motor | 0.4 servo motor |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.1g· mm/kg | ≤0.15g· mm/kg |
| Power | AC220V, Single-Phase, 50HZ | AC220V, Single-Phase, 50HZ |
1)Stepless speed regulation
