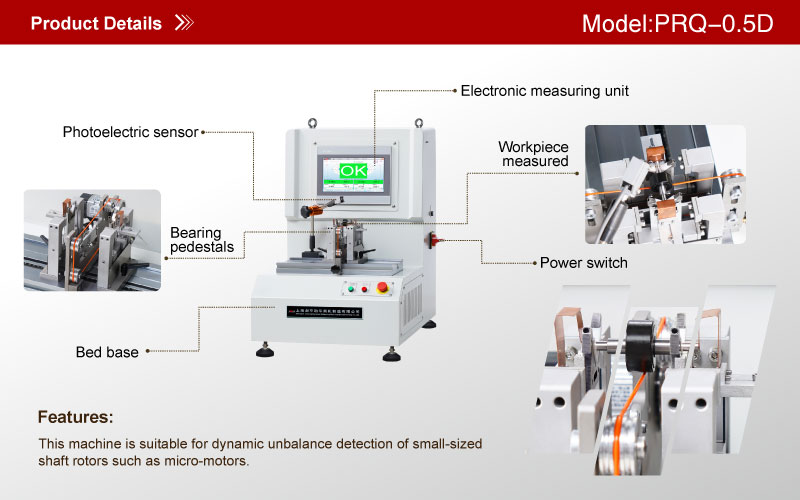

Mini Auto Positioning Soft Bearing Balancer

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

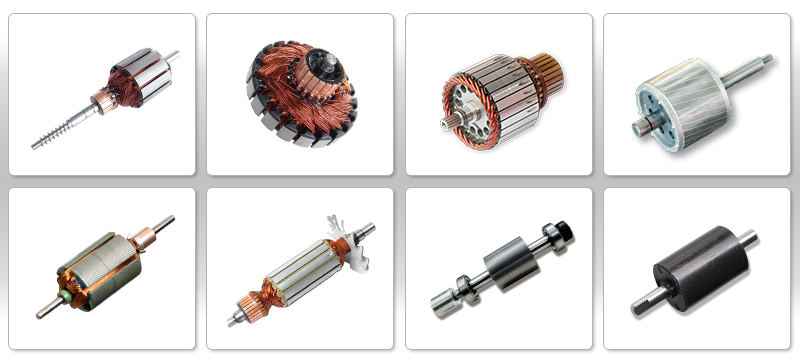

Suitable for large batch balancing of miniature shaft rotors such as micro-motors and electric tools.


Features

1.Adopt Jianping drive device, which can realize accurate automatic positioning

2.Automatically stop if the measurement is qualified, and automatically stop at the unbalanced point if it is not qualified

3.Avoid manual looking for angles, thereby improving work efficiency

4.Down-cut belt drive is convenient for loading & unloading

5.Touch screen HMI, easy to operate

6.Jianping balancing machine measurement software


PRQ-0.5D/1.6D/5D/16D Auto Positioning Balancing Machine (Soft Bearing)


Technical data at a glancePRQ-0.5D/1.6DPRQ-5D/16D
Max Mass of Workpiece (kg)0.5/1.65/16
Max Diameter of Workpiece (mm)Φ150Φ350
Distance between Two Support Bearings (mm)20~32020~320
Journal Diameter Scope of Workpiece (mm)Φ2~10Φ5~35
Diameter Scope of Driving Belt (mm)Φ10~50Φ5~200
Rotational Speed when the Diameter of Driving Belt is100mm(r/min)~14701)~14701)
Motor Power (kw)0.1 servo motor0.4 servo motor
Min Achievable Residual Unbalance Amount (emar)≤0.1g· mm/kg≤0.15g· mm/kg
                PowerAC220V, Single-Phase, 50HZAC220V, Single-Phase, 50HZ


1)Stepless speed regulation
