Auto-Positioning Balancing Machines

立式竖钻全自动平衡机

Application

Suitable for large batch balancing of miniature shaft rotors such as micro-motors and electric tools.

Features

1.Adopt Jianping drive device, which can realize accurate automatic positioning

2.Automatically stop if the measurement is qualified, and automatically stop at the unbalanced point if it is not qualified

3.Avoid manual looking for angles, thereby improving work efficiency

4.Down-cut belt drive is convenient for loading & unloading

5.Touch screen HMI, easy to operate

6.Jianping balancing machine measurement software

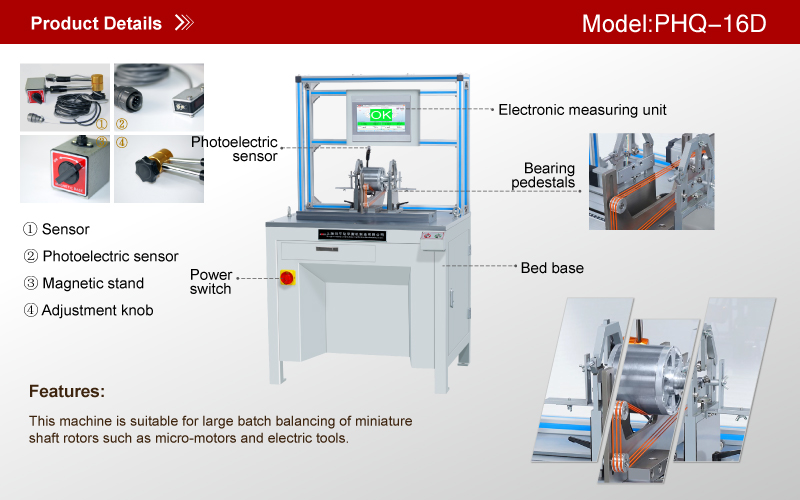

PHQ-1.6D/5D/16D Auto Positioning Balancing Machine (Harding Bearing)

Technical data at a glance	PHQ-1.6D/5D/16D	PHQ-G5D/16D
Max Mass of Workpiece (kg)	1.6/5/16	5/16
Max Diameter of Workpiece (mm)	Φ260	Φ300
Distance between Two Support Bearings (mm)	40~500	15~500
Journal Diameter Scope of Workpiece (mm)	Φ3~30	Φ3~40
Diameter Scope of Driving Belt (mm)	Φ20~200	Φ20~200
Rotational Speed when the Diameter of Driving Belt is100mm(r/min)	~1470¹⁾	~1410¹⁾
Motor Power (kw)	0.4 servo motor	0.2 DC motor
Min Achievable Residual Unbalance Amount (emar)	≤0.15g· mm/kg	≤0.15g· mm/kg

PRQ-0.5D/1.6D/5D/16D Auto Positioning Balancing Machine (Soft Bearing)

Technical data at a glance	PRQ-0.5D/1.6D	PRQ-5D/16D
Max Mass of Workpiece (kg)	0.5/1.6	5/16
Max Diameter of Workpiece (mm)	Φ150	Φ350
Distance between Two Support Bearings (mm)	20~320	20~320
Journal Diameter Scope of Workpiece (mm)	Φ2~10	Φ5~35
Diameter Scope of Driving Belt (mm)	Φ10~50	Φ5~200
Rotational Speed when the Diameter of Driving Belt is100mm(r/min)	~1470¹⁾	~1470¹⁾
Motor Power (kw)	0.1 servo motor	0.4 servo motor
Min Achievable Residual Unbalance Amount (emar)	≤0.1g· mm/kg	≤0.15g· mm/kg
Power	AC220V, Single-Phase, 50HZ	AC220V, Single-Phase, 50HZ

PR2Q-0.5D/1.6D Two Station Soft-bearing Auto-positioning Balancing Machine

Technical data at a glance	PR2Q-0.5D	PR2Q-1.6D
Max Mass of Workpiece (kg)	0.5	1.6
Max Diameter of Workpiece (mm)	Φ150	Φ150
Distance between Two Support Bearings (mm)	20~320	20~320
Journal Diameter Scope of Workpiece (mm)	Φ2~10	Φ2~10
Diameter Scope of Driving Belt (mm)	Φ60	Φ60
Rotational Speed when the Diameter of Driving Belt is100mm(r/min)	~1200¹⁾	~1200¹⁾
Motor Power (kw)	0.05 stepper motor	0.05 stepper motor
Min Achievable Residual Unbalance Amount (emar)	≤0.1g· mm/kg	≤0.1g· mm/kg
Power	AC220V, Single-Phase, 50HZ	AC220V, Single-Phase, 50HZ

PHQ-50D/160D Large Sized Auto Positioning Balancing Machine

Technical data at a glance	PHQ-50D	PHQ-160D
Max Mass of Workpiece(kg)	50	160
Max Diameter of Workpiece (mm)	Φ700	Φ1000
Distance Between Two Support Bearings (mm)	80~700	130~1270
Journal Diameter Scope of Workpiece (mm)	Φ 8~140	Φ 15~180
Diameter Scope of Driving Belt (mm)	Φ20~200	Φ40~400
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)	700,1050¹⁾	1260¹⁾
Motor Power (kw)	1.5 servo motor	3 servo motor
Min Achievable Residual Unbalance Amount (emar)	≤0.15g· mm/kg	≤0.15g· mm/kg

PRS-0.3D/1.1D Auto Positioning Balancing Machine

Technical data at a glance	PRS-0.3D	PRS-1.1D
Max Mass of Workpiece(kg)	0.3	1.1
Max Diameter of Workpiece (mm)	Φ40	Φ80
Distance Between Two Support Bearings (mm)	7-44	15-110
Journal Diameter Scope of Workpiece (mm)	1.5-10	2-12
Balancing Speed when Diameter of Driving Belt is 40mm（r/min)	~3670
Motor Power (kw)	0.1 stepper motor	0.1 stepper motor
Min Achievable Residual Unbalance Amount (emar)	≤1g·mm/Kg	≤1g·mm/Kg
Power Supply	Single-phase 220V 50HZ	Single-phase 220V 50HZ

1)Stepless speed regulation
