Automobile Single Cooling Fan Vertical Balancer
Describe Parameter Photo Video Download Get a Quote
Application

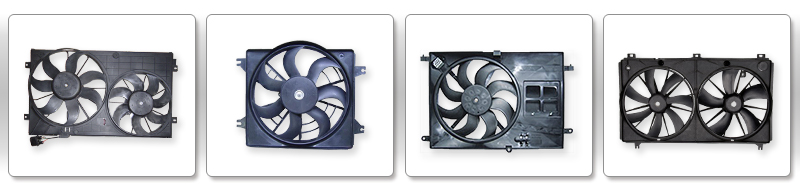

It is suitable for the overall balancing of products such as automobile engine cooling fan and water tank cooling fan assembly.
Features
1.Adopt 15-inch touch screen, JP800 balancing software
2.While measuring dynamic unbalance, it can also test current, voltage, power and other electrical parameters
3.The fixture can be adapted to various variants, and the pneumatic chuck can quickly clamp the workpiece
| Technical data at a glance | PRZD-5HL1/5HL2 |
| Max Mass of Workpiece(kg) | 5 |
| Maximum Workpiece Frame Size(mm) | 900*700 |
| Balancing Speed(r/min) | 1500-5000 |
| Min Achievable Residual Unbalance Amount (emar) | 6g.mm/kg |
| Unbalance Reduction Rate(%) | ≥90 |
| Electrical Parameters Measuring Number Instrument | Voltage 1-300v, Current 0.02-50A, Power factor 0.05 Frequency 45-65HZ (AC |
| Working Pressure | 0.4-0.6Mpa |
| Working Voltage | AC220V |
| Security | Automatic door |
| Software Interface | 12 inch touch screen |
| Dimensions | L1900*H1720*W790mm |
| Optional Function | Electric function test vibration and deflection test functions |
