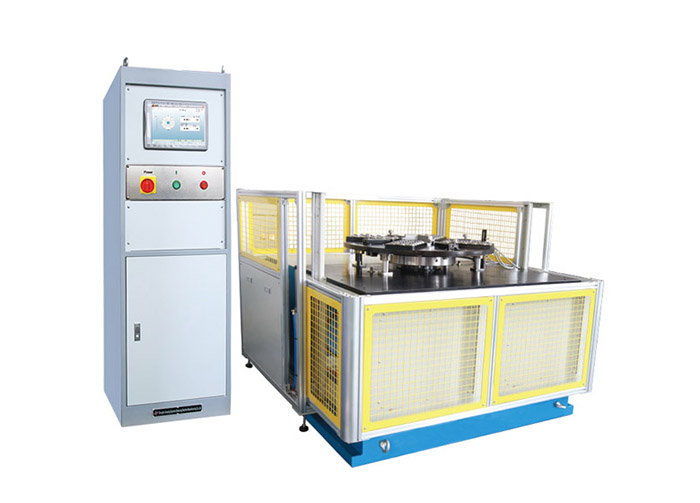

Train Wheel Hub Balancing Machines

时间：2019-04-04 03:01:10 点击数：1019

Specially designed,solid brackets can effectively transmit mechanical force

Durable and reliable sensor possesses high sensitivity and good linearity

Permanent calibration brings high accuracy

Special clamp offers higher accuracy and easier operation

Advanced electrical measuring system and friendly man-machine interface

As the customer's request,the de-weighting system can be equiped
Applicable to large workpieces

Technical data at a glance	PHLD-1100Q	PHLD-3500Q
Max Mass of Workpiece (kg)	1100	3500
Max Diameter of Workpiece (mm)	1500	1500
Height of workpiece(mm)	200	200
Spindle speed(r/min)	120~370	120~370
Motor power(kw)	7.5³⁾	11³⁾
Min Achievable Residual Unbalance Amount (emar)	1g · mm/kg	1g · mm/kg

1) With hood
2) Without hood

3) Frequency conversion
