Machine introduction

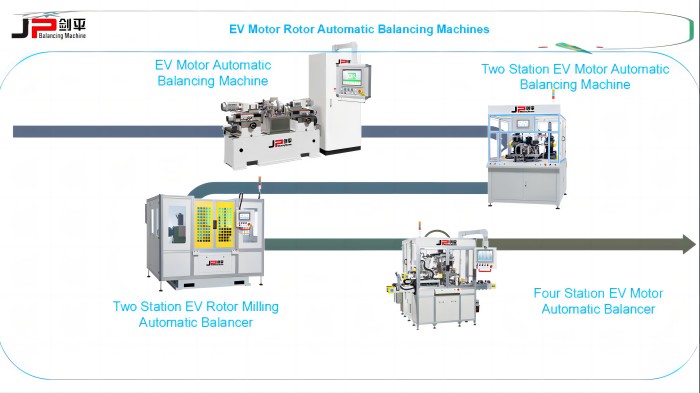

The equipment is a dual-station automatic balancing machine designed for the EV motor rotor, for the same workpiece, the same speed does not need to re-calibrate, the setting is very simple. The measurement software developed by our company can not only complete the setting of rotor parameters, the input of rotor varieties, the processing of unbalance data, the tooling fixture changeover of the measuring unit and automatic drilling , but also has the functions of data saving, export printing and query.

The measuring mechanism of the whole machine has anti-magnetic function, the fully closed protective cover and the high-power vacuum cleaner ensure that the drilling chips will not splash out, the handling of the measurement and the cutting station are independent, the loading operation is not affected while cutting, and the cycle time is accelerated. The whole machine has protective cover protection, the alarm light will indicate when an abnormal situation occurs, and the indicator light prompts at the end of a single piece.

Machine features:

1.Hardware filter circuit is adopted to reduce external vibration and other interference, can achieve high precision measurement.

2.Servo motor pulse control is adopted to control the angle of unbalance, can achieve accurate positioning.

3.With automatic drilling and weight removal function, taking out the product after it is judged OK , can drill multiple rows of holes.

4.It is convenient to replace the drill, and the weight removal mechanism has automatic tool setting function and tool breaking alarm function.

5.When the equipment fails, there will be an alarm light prompt, which is easy to find the fault location. The end of the workpiece is also indicated by an indicator light.

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. was founded in 2004, committed to the R & D, manufacturing, sales and automation technology research of high-tech and high-precision dynamic balancing machine. Our EV motor balancing machine can reduce the overall vibration of the equipment, reduce the pressure and wear of the wheel bearing, and make the electric vehicle run more stable for a long time.

At present, BYD alone has purchased more than 100 units of new energy automatic balancing machines from our company, and we have also obtained the first Shanghai brand certification in the balancing machine industry. New energy automatic balancing machine, you deserve to have!
