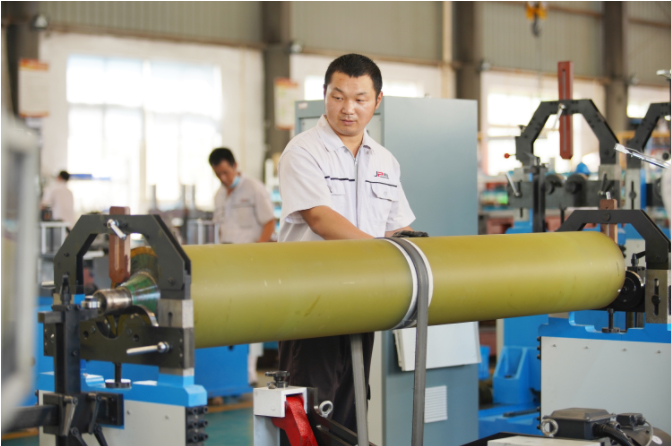

Horizontal hard-bearing balancing machine for roll balancing

Horizontal hard-bearing balancing machine for roll balancing

High precision balancing machine for pulp and paper mills, steel mills. Roll balancing with masses up to 20 tons.

 Standard Specifications PHQ-20000H

Weight Capacity, kg 1000 - 20000

Max. rotor diameter, mm 2800

Distance between the centers of rotor bearing journals, mm 750- 5600

Shaft journal diameter range, mm 60 - 400

Sensitivity, g·mm/kg 0.5

Balancing speed, rev/min 100 - 1800

Drive motor AC 30 kW

Drive type Belt (standard)

Belt+End (option)

Standard base length, mm 12000

■ Highest balance sensitivity - up to 0.5 g·mm/kg

■ Anti-friction bearing work supports eliminate time-consuming alignment procedures. Bearings have a flat, wide-contact surface to carry rotors without damaging journals

■ Balance at lower and safer speeds

■ The machine installed without foundations, not required expensive construction of special concrete foundations

■ Transportable, modular design

■ Automatic additional turn of a rotor on a required angle

■ Touch screen balancing computer, with all accessories needed for balancing

■ The highest quality of manufacturing
