Five-station Weight Removal Wound Armature Automatic Balancer

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

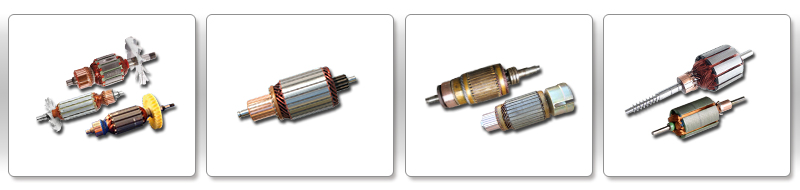

It is applied to the unbalance correction of the motor rotors of various household appliances, power tools, and starter motors. This machine comes with an automatic assembly line for input & output, with a high degree of automation.

Features

1.Automatic loading & unloading of the assembly line

2.Friendly HMI

3.Quick and easy product changeover

4.Rapid production cycle time, high once reduction ratio

5.Soft-bearing high precision balancing measurement system

6.Independent research and development of software and hardware, equipment can be personalized with strong functions

Five Station Wound Rotor Automatic Balancing Machines

Technical data at a glance	A₅WX₂₁
Max Weight of Workpiece (kg)	1.5
Max Diameter of Workpiece (mm)	30～60mm
Rotor Length (mm)	≤240mm
Rotor Lamination Thickness(mm)	φ20～60mm
Balancing Speed (r/min)	800～1200rpm
Balancing Motor Power (kw)	0.4 KW Servo Motor
Min Achievable Residual Unbalance Amount (g.mm/kg)	≤0.2
Testing Time (second)	～9s
Reduction Rate of Unbalance	≥90%
Working Pressure (MPa)	0.45-0.6
Air Consumption	～40L/min
Operating Voltage (V)	AC: 380V 3 Phase/50Hz
Drilling Power (kw)	0.75*2
Total Power (kw)	～8.9
Protection	Phase Sequence Protection, Overload Protection, Air Pressure Monitoring

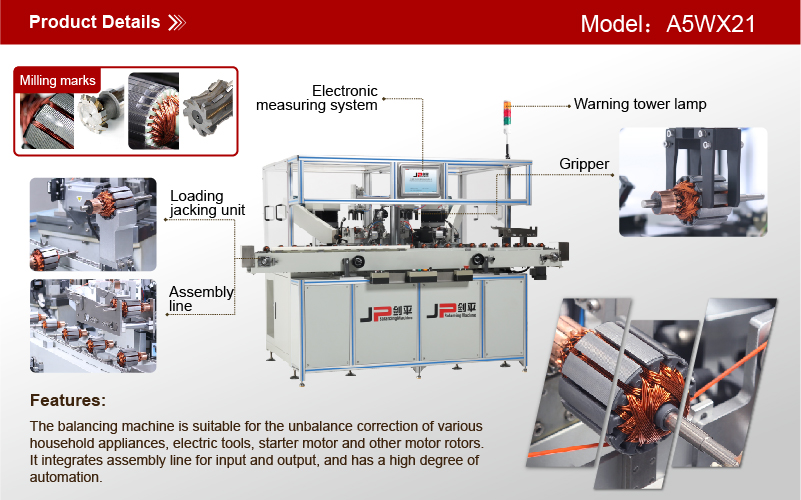

A5WX21 绕线转子五工位_画板 2(1).jpg
