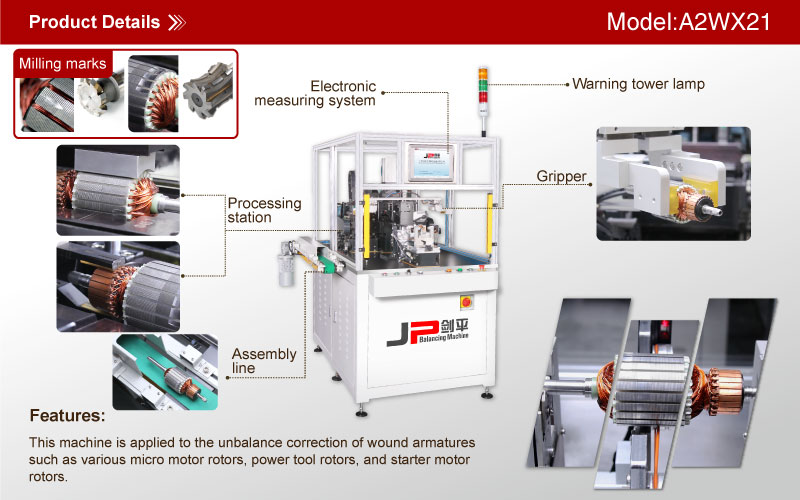

Two-station Milling Wound Armature Automatic Balancer

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

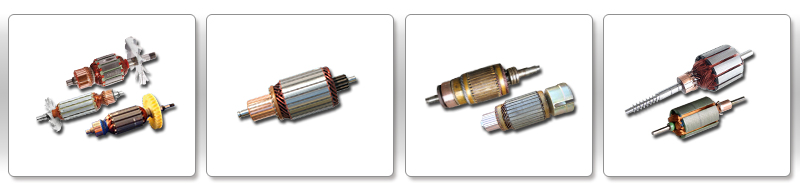

It is applied to the unbalance correction of wound armatures such as various micro motor rotors, power tool rotors, and starter motor rotors.


Features

1.Manual loading & unloading

2.Intelligent HMI

3.Balancer measurement software developed by Jianping

4.Automatic measurement, automatic drilling & correction, automatic retest

5.The workpiece can be corrected more than twice

6.Soft-bearing high precision balancing measurement system

7.Ergonomic structure design, high machine use efficiency


Winding Rotor Milling Two-Station Automatic Balancing Machine
Technical data at a glance
A2WX21
Max Weight of Workpiece (kg) 1.5
Max Diameter of Workpiece (mm)
35-60
Rotor Length (mm) ≤210
Journal Diameter (mm)
φ6-16
Balancing Speed (r/min)
1000-1500
Balancing Motor Power (kw)
0.4 KW Servo Motor
Min Achievable Residual Unbalance Amount (g.mm/kg) ≤0.2
Testing Time (second)
5-9
Reduction Rate of Unbalance ≥90%
Working Pressure (MPa) 0.45-0.6
Operating Voltage (V) AC: 380V external
Milling Mode V/R/ type cutter
Stack Thickness (mm) 20-60
Balancing Machine Type Soft Bearing Measuring Bracket
Machine Power (kw) 6
Average Machine Consumption(l/min) 35
Computer Touch Screen 12〃Weinview
PLC Simens
