Your current location：> >> PRODUCTS >> Automatic Balancers >> Vertical Drilling Automatic Balancer

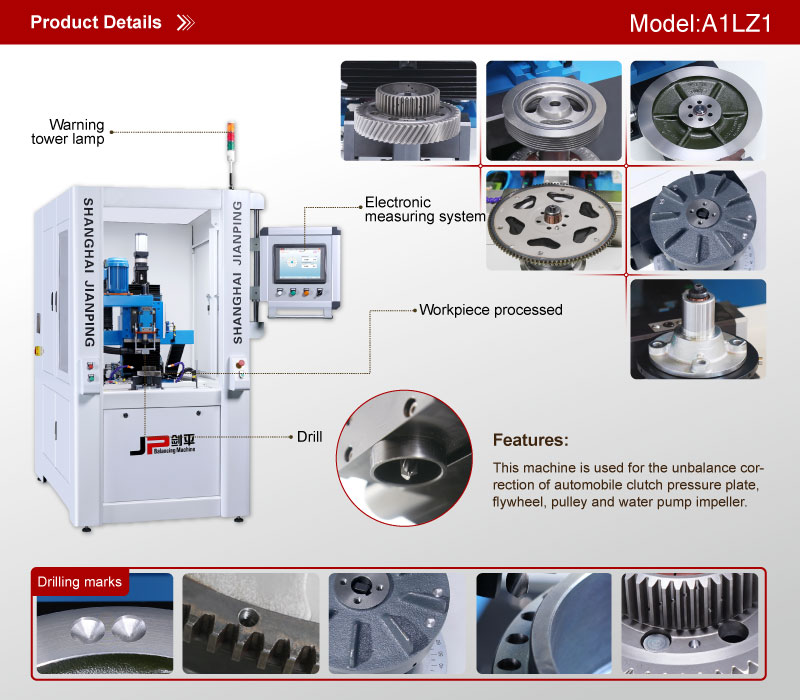

Automatic Drilling Balancing Machines
Describe Parameter Photo Video Download Get a Quote
Application

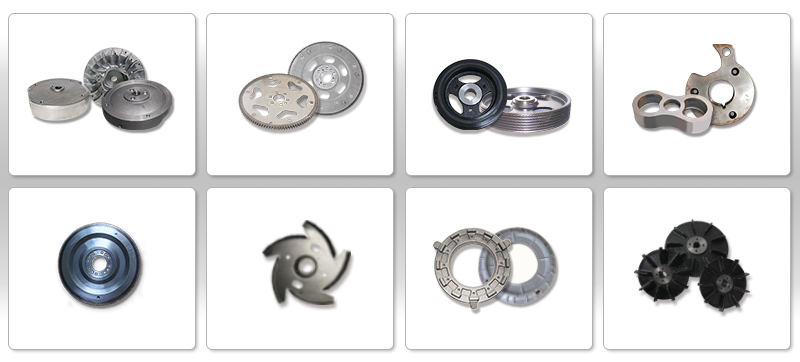

It is applied to the balance correction of automobile clutch pressure plate, flywheel, pulley and water pump impeller.
Features
1.10 inch touch screen
2.Advanced balancing measurement software technology
3.Automatic measurement, automatic drilling & correction, automatic retest
4.Ergonomic structure design, high machine use efficiency
5.The workpiece can be corrected more than twice
6.Manual loading & unloading

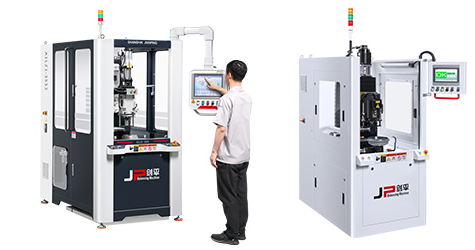

Single-Station Auto-Drilling Balancing Machine
| Technical data at a glance | A1LZ1-5 | A1LZ1-35 | A1LZ1-150 |
| Mass of Workpiece(kg) | 5(clamp included) | 35(clamp included) | 150(clamp included) |
| Max Height of Workpiece (mm) | 200 | 200 | 200 |
| Max Diameter of Workpiece (mm) | 40-400 | 100-400 | 200-600 |
| Balancing Speed（r/min) | 800 | 800 | 800 |
| Motor Power（kw） | 0.75 | 1.5 | 7.5 |
| Min Achievable Residual Unbalance Amount (g.mm/kg) | 3 | 3 | 3 |
| Drilling Speed（r/min） | 1500 frequency conversion | 1500 frequency conversion | 1500 frequency conversion |
| Cutting Spindle Motor Power(kw) | 0.75 | 0.75 | 1.5 |
| Max Allowed Correct Times | 2 | 2 | 2 |
| Machine Weight(ton) | 1.5 | 1.5 | 2 |
| Dimensions(mm) | 950*1700*2000 | 950*1700*2000 | 950*1700*2000 |
| Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Processing Period(s) | 8-12 | 8-12 | 15-20 |
| Total Power（kw） | 7.5 | 8 | 15 |
| Rotor thickness (mm) | 150 | 150 | 200 |
| Operating Voltage（v） | AC:380External | AC:380External | AC:380External |
| Drilling Method | Standard drill | Standard drill | Standard drill |
| Balancing Machine Type | Hard bearig bracket | Hard bearig bracket | Hard bearig bracket |
| Average Gas Consumption | 6 L/min | 6 L/min | 6 L/min |
| Unbalance Reduction Rate | ≥95% | ≥95% | ≥95% |
| Protection | Phase sequence protection. Overload protection. Pressure detection | ||
