Medium-sized Single-plane Vertical Balancer
Describe Parameter Photo Video Download Get a Quote
Application

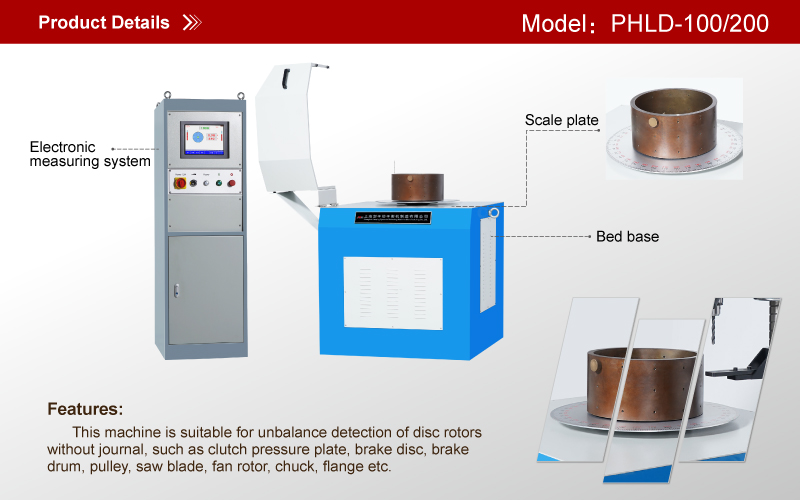

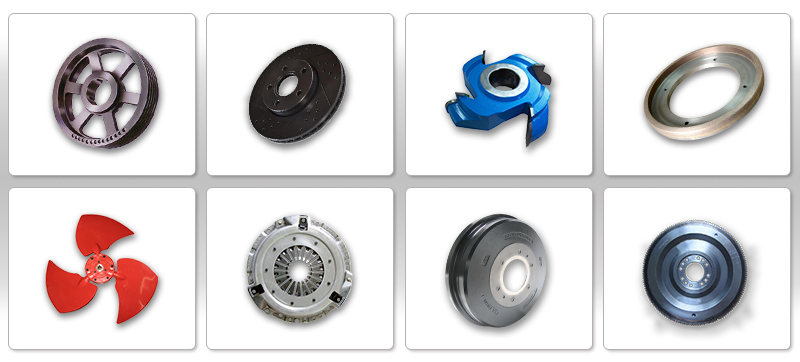

This machine is suitable for unbalance detection of disc rotors without journal, such as clutch pressure plate, brake disc, brake drum, pulley, saw blade, fan rotor, chuck, flange etc.
Features
1.The brackets designed by Jianping can transmit mechanical force, which is firm and reliable, with small vibration damping and good rigidity.
2.High sensitivity sensor, good linearity, durable and reliable.
3.Calibration measurement principle, allowing high initial unbalance.
4.Equipped with a special fixture, more convenient for clamping.
5.Electronic measurement system, friendly HMI, powerful functions.
6.The weight removal device can be equipped as customer’s request.
| Technical data at a glance | PRLD-0.5/0.5DQ | PRLD-3.5/3.5DQ | PHLD-5A | PHLD-5Q | PHLD-5H | PH2LD-5 | PHLD-16H | PHLD-35Q | PRLD-35Q/35DQ | PHLD2Q-35 | PHLD-35H |
| Max Mass of Workpiece (kg) | 0.5 | 3.5 | 5 | 5 | 5 | 5 | 16 | 35 | 35 | 35 | 35 |
| Max Diameter of Workpiece (mm) | Φ150 | Φ200 | 600 | Φ350-500 | Φ350-500 | Φ500 | 5101) 8002) | Φ400 | Φ400 | Φ580 | Φ180~450 |
| Height of workpiece(mm) | 50 | 120 | 120 | 120 | 130 | 120 | 160 | 200 | 220 | 185 | 200 |
| Spindle speed(r/min) | 36004) | 36004) | 900 | 1200 | 1200 | 12004) | 900 | 8004) | 8004)/14004) | 400~12004) | 800~850 |
| Motor power(kw) | 0.25)/0.16) | 0.25)/0.46) | 0.18 | 0.373) | 0.373) | 0.373) | 1.53) | 1.53) | 1.53)/36) | 1.53) | 1.53) |
| Min Achievable Residual Unbalance Amount (emar) | 0.5g · mm/kg | 0.5g · mm/kg | 2g · mm/kg | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 2g · mm/kg |
| Technical data at a glance | PHLD-42H | PHLD-65H | PHLD-100 | PHLD-150Q | PHLD-200 | PHLD-350Q |
| Max Mass of Workpiece (kg) | 42 | 65 | 100 | 150 | 200 | 350 |
| Max Diameter of Workpiece (mm) | 5101) 8002) | 5101) 8002) | 6001) 10002) | Φ600 | 6001) 10002) | Φ600 |
| Height of workpiece(mm) | 160 | 160 | 200 | 300 | 200 | 300 |
| Spindle speed(r/min) | 800 | 700 | ~6004) | ~4504) | ~6004) | ~4504) |
| Motor power(kw) | 1.53) | 2.23) | 33) | 33) | 43) | 43) |
| Min Achievable Residual Unbalance Amount (emar) | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg |
Applicable to large workpieces
| Technical data at a glance | PHLD-1100Q | PHLD-3500Q |
| Max Mass of Workpiece (kg) | 1100 | 3500 |
| Max Diameter of Workpiece (mm) | 1500 | 1500 |
| Height of workpiece(mm) | 500 | 500 |
| Spindle speed(r/min) | ~3404) | ~3404) |
| Motor power(kw) | 7.53) | 153) |
| Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg | 2g · mm/kg |
Dual-Plane Vertical Balancing Machines
| Technical data at a glance | PHLS-5Q | PHLS-35Q | PHLS-150Q | PHLS-350Q |
| Max Mass of Workpiece (kg) | 5 | 35 | 150 | 350 |
| Max Diameter of Workpiece (mm) | Φ350-500 | Φ400 | Φ600 | Φ600 |
| Height of workpiece(mm) | 130 | 220 | 300 | 300 |
| Spindle speed(r/min) | 1200 | 8004) | 4504) | 4504) |
| Motor power(kw) | 0.37 | 1.53) | 33) | 43) |
| Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 2g · mm/kg |
2) Without hood
4) Stepless speed regulation
5) DC Brushless
6) Servo Motor
