Medium-sized Universal Joint Drive Balancing Machine

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

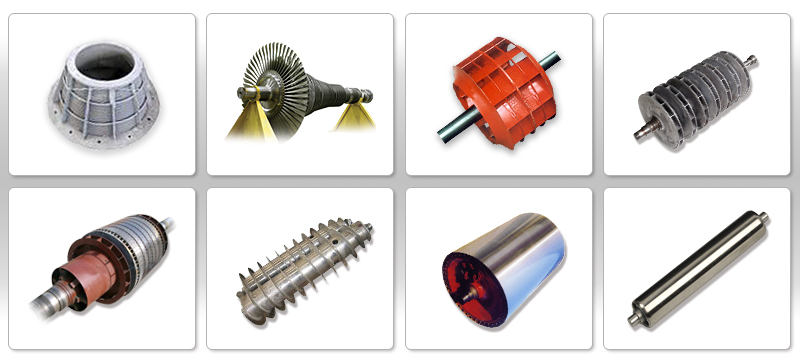

It is used for the unbalance correction of rotating workpieces such as large and medium-sized motor rotors, blowers, centrifugal impellers, drying cylinders, and rollers.


Features

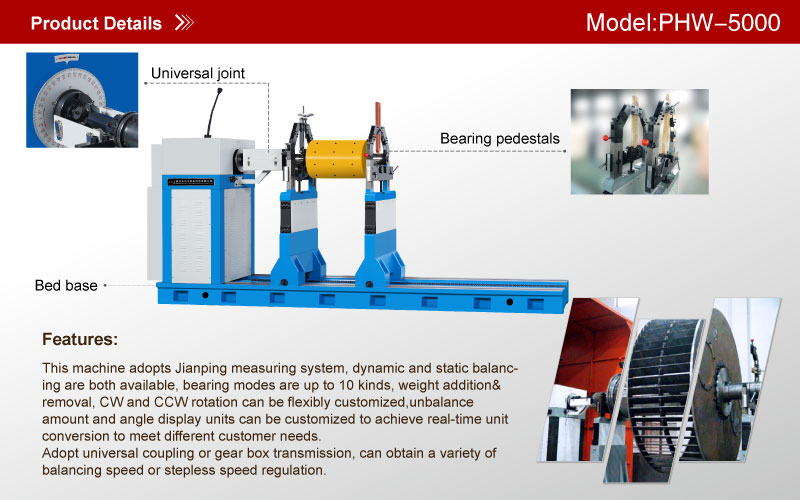

This machine adopts Jianping measuring system, dynamic and static balancing are both available, bearing modes are up to 10 kinds, weight addition& removal, CW and CCW rotation can be flexibly customized,unbalance amount and angle display units can be customized to achieve real-time unit conversion to meet different customer needs.

Adopt universal coupling or gear box transmission, can obtain a variety of balancing speed or stepless speed regulation.


Applicable to medium workpieces


Technical data at a glancePHW-1000HPHW-2000HPHW-3000HPHW-5000
Mass Scope of Workpiece(kg)1000200030005000
Max Diameter of Workpiece(mm)Φ1600Φ1800Φ2100Φ2400
Distance Between Two Support Bearings(mm)Min 60Min 60Min 60Min 320
Journal Diameter Scope of Workpiece(mm)Φ25~1203)Φ25~1203)Φ25~1203)Φ40~380
Max Distance between Driving Flange and Right Bearing Support (mm)1600190019002500
Rotational Speed of the Main Axis(r/min)600,10954)485,8184)133,255,396.
634,9704)
133,255,396,
634,9704)
Motor Power (kw)41)7.51)7.51)151)
Torque of Universal Joint Shaft(N·m)2503007001250
Length of Bed (mm)2500300030004000
Min Achievable Residual Unbalance Amount(emar)≤0.5g· mm/kg≤0.5g· mm/kg≤0.5g· mm/kg≤0.5g· mm/kg


1)Frequency conversion
2)Can add to 75-180
3)Can add to 120~240
4)
Stepless speed regulation
