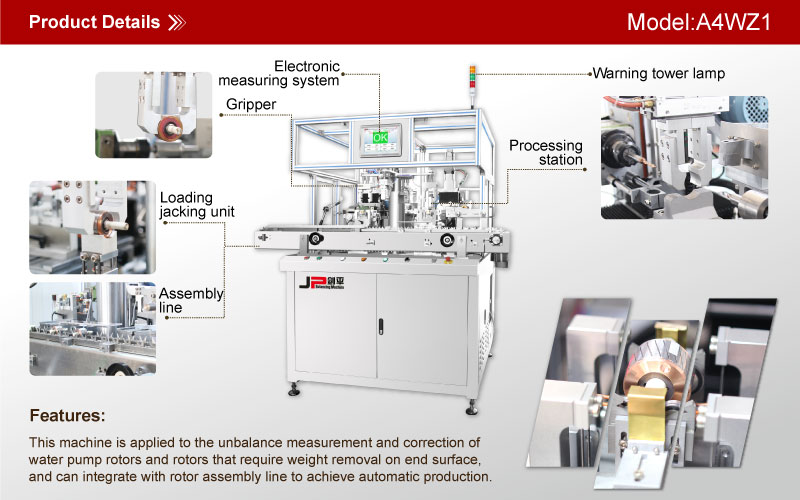

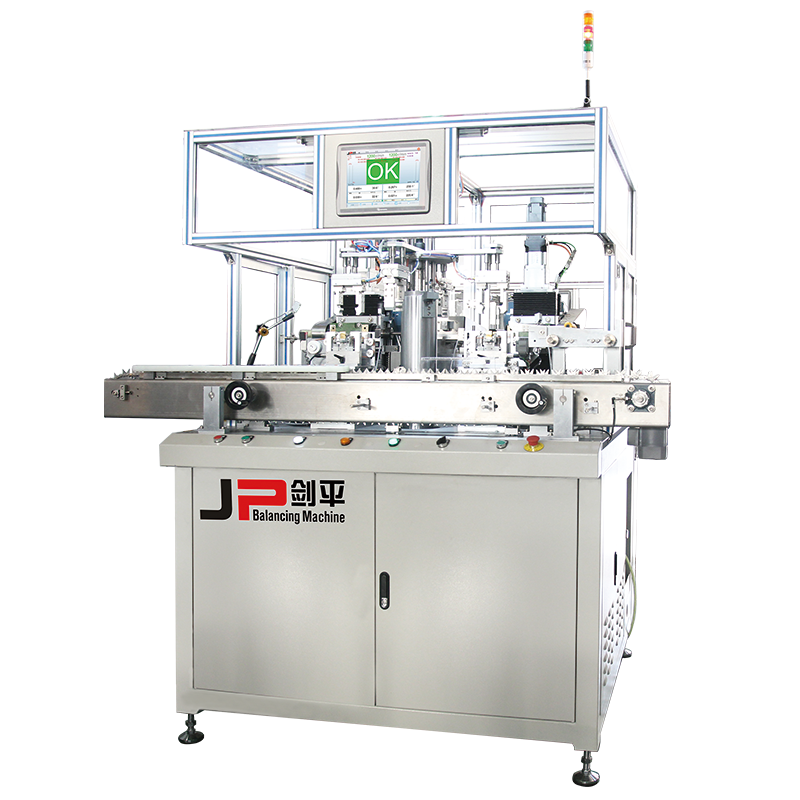

Four-station End Surface Drilling Automatic Balancer

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

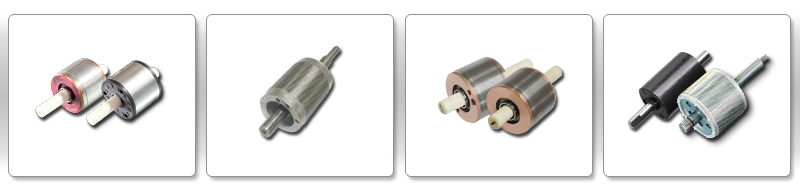

It is applied to the unbalance measurement and correction of water pump rotors and rotors that require weight removal on end surface, and can integrate with rotor assembly line to achieve automatic production.


Features

1.Automatic loading & unloading of the assembly line

2.10 inch HMI

3.Six-axis linkage, simultaneous processing

4.Quick product changeover

5.Soft-bearing high precision balancing measurement system


End Face Drilling Four Station Automatic Balancing Machines
Technical data at a glance
A4WZ1
Max Weight of Workpiece (kg) 1.6
Max Diameter of Workpiece (mm)
30-130
Journal Diameter (mm) φ5-16
Balancing Speed (r/min)
≤2500
Balancing Motor Power (kw)
0.4 KW Servo Motor
 Min Achievable Residual Unbalance Amount (g.mm/kg)
≤0.3
Testing Time (second) 5-9
Reduction Rate of Unbalance
≥90%
Working Pressure (MPa) 0.4-0.6
Operating Voltage (V) AC: 380V external
Milling Mode Drilling
Take Time (second) 12-15 Drilling once on the left and right side
Drilling Power (kw) 0.75
Average Machine Consumption(l/min) 50
Balancing Machine Type Soft Bearing Measuring Bracket
Machine Total Power (kw) 9.5
Protection Phase Sequence Protection, Overload Protection, Air Pressure Monitoring
