Textile Machine Grooved Drum Shaft Balancer

立式竖钻全自动平衡机

Describe Parameter Photo Video Download Get a Quote

Application

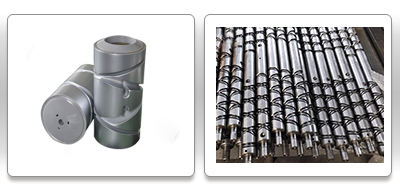

Used for the unbalance correction of rotating workpieces such as grooved drum shafts of textile machine.


Features

This machine adopts Jianping’s electronic measurement system, with various measurement methods, dynamic and static balancing, bearing modes are up to 10 kinds, weight addition& removal, CW and CCW rotation can be flexibly customized. It adopts multiple calibration coefficient combinations, automatically adjusts system sensitivity, and shifts without jumps, software and hardware dual filtering, data compression, the measurement is more stable.


Applicable to medium workpieces

Technical data at a glancePHQ-50
Max Mass of Workpiece(kg)50
Max Diameter of Workpiece (mm)Φ700
Distance Between Two Support Bearings (mm)80~700
Journal Diameter Scope of Workpiece (mm)Φ 8~755)
Diameter Scope of Driving Belt (mm)Φ18~200
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 700,10501)
Motor Power (kw)0.752)
Length of Bed (mm)
Min Achievable Residual Unbalance Amount (emar)≤0.15g· mm/kg


1) Stepless speed regulation
2) Frequency conversion

3) Can add to 75-180

4Can add to 120-240

5Can add to 75-140
